A ball is released from position A and travels 5m before striking the smooth fixed inclined plane as shown. If the coefficient of restitution in the impact is $e = \frac{1}{2}$ , the time taken by the ball to strike the plane again is

2.5s

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

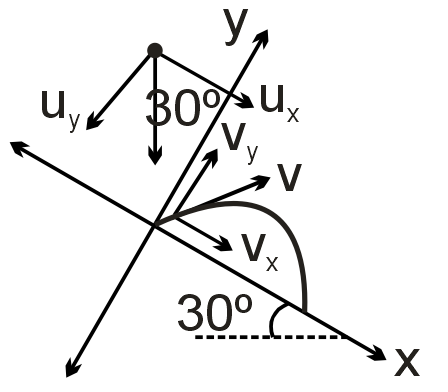

Just before first collision,
speed $u = \sqrt{2 g (5)} = 10 m / s$

$u_{y} = - 10 \cos 30 ° = - 5 \sqrt{3}$

u_x = 10 sin 30° = 5 m/s
v_x = u_x = 5 m/s

$v_{y} = - {eu}_{y} = \frac{5}{2} \sqrt{3}$

It strikes the plane again at time,

$t = \frac{2 vy}{gcos 30 °} = 1 \sec$ .
