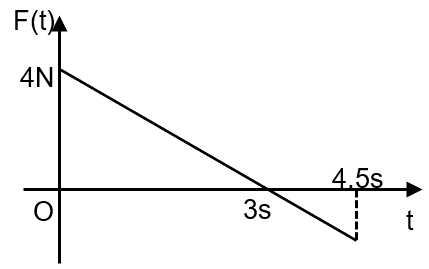

A block of mass 2 kg is free to move along the x-axis. It is at rest and from t = 0 onwards it is subjected to a time-dependent force F(t) in the x direction. The force F(t) varies with t as shown in the figure. The kinetic energy of the block after 4.5 seconds is

Engineering

Physics

Momentum and Energy Conservation for System of Particles

Question

7.50J

4.50J

5.06J

14.06J

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Area = mv = $\frac{1}{2} \times 4 \times 3 - \frac{1}{2} \times 2 \times 1 .5$ = 4.5 = 2 × v

v = 2.25 m/s

$k = \frac{1}{2} \times 2 \times {(\frac{4 .5}{2})}^{2} = 5 .06 J$
