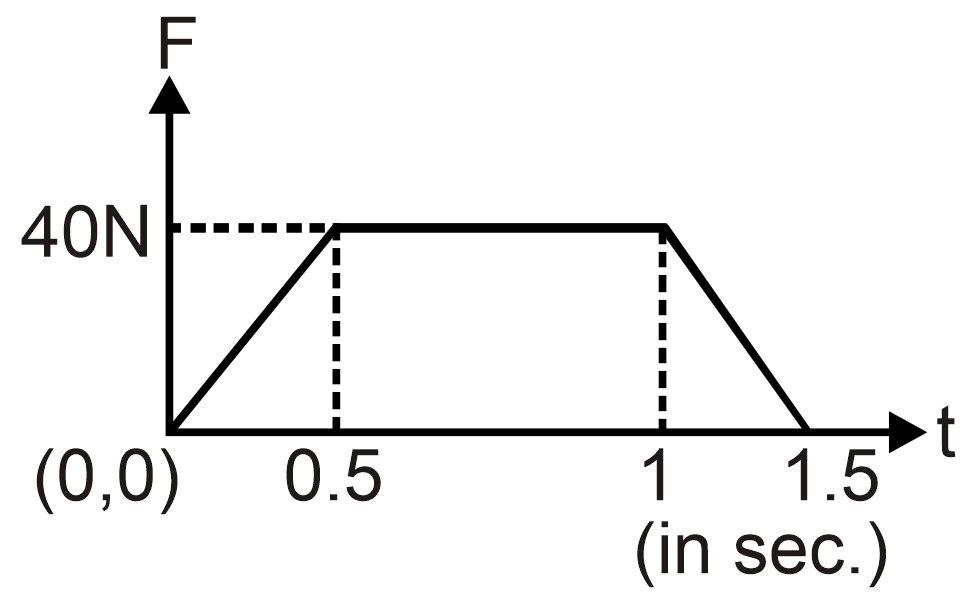

A body of mass m = 4kg moving with a velocity 10 m/s collides elastically head-on with another stationary object for 1.5 sec. The impulsive force versus time graph is shown during the collision of the body and object. Find the mass object in kg.

Engineering

Physics

Newtons Second Law of Motion

Collision

Momentum and Energy Conservation for System of Particles

Question

A body of mass m = 4kg moving with a velocity 10 m/s collides elastically head-on with another stationary object for 1.5 sec. The impulsive force versus time graph is shown during the collision of the body and object. Find the mass object in kg.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$J = \frac{1}{2} \times 40 \times (0.5 + 1.5) = 40 NS$

V₄ = 40 – 40 = 0 ⇒ velocity is exchanged.
⇒ m₁ = m₂
