Question

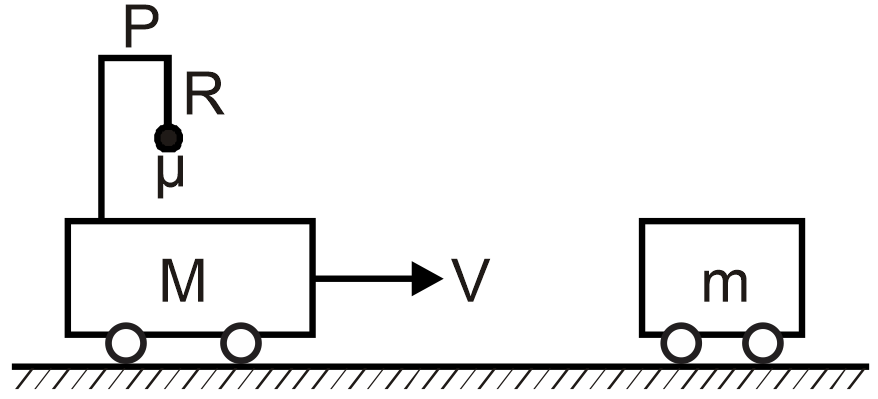

A cart of mass M has a pole on it from which a ball of mass µ hangs from a thin string attached at point P. The cart and ball have initial velocity V. The cart crashes onto another cart of mass m and sticks to it (figure). If the length of the string is R, the smallest initial velocity (in m/s) for which the ball can go in circles around point P is. Neglect friction and assume M, m >> µ. Given m = 1kg, M = 2kg, R = 2m.

JEE Advance
College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Solution
Verified BY
Verified by Zigyan

As µ << m, M, momentum conservation
        MV = (M + m)V'
gives for the velocity of the two carts after collision,

V=MVM+m

Consider the circular motion of the ball atop the cart M if it were stationary. If at the lowest and highest points the ball has speeds V1 and V2 respectively, we have

12μV12=12μV22+2μgR

μV22R=T+μg

where T is the tension in the string when the ball is at the highest point. The smallest V2 is given by T = 0. Hence the smallest V1 is given by

12μV12=12μgR+2μgR i.e. V1=5gR

With the cart moving, V1 is the velocity of the ball relative to the cart. As the ball has initial velocity V and the cart has velocity V' after the collision, the velocity of the ball relative to the cart after the collision is V – V'. Hence the smallest V for the ball to go round in a circle after the collision is given by

VV=VMVM+m=5gR       i.e.   V=M+mm5gR
