A circular insulated copper wire loop is twisted to form two loops of area A and 2A as shown in the figure. At the point of crossing the wires remain electrically insulated from each other. The entire loop lies in the plane (of the paper). A uniform magnetic field points into the plane of the paper. At t = 0, the loop starts rotating about the common diameter as axis with a constant angular velocity ω in the magnetic field. Which of the following options is/are correct?

Engineering

Physics

Magnetic Flux and Faraday Law and Lenz Law

Question

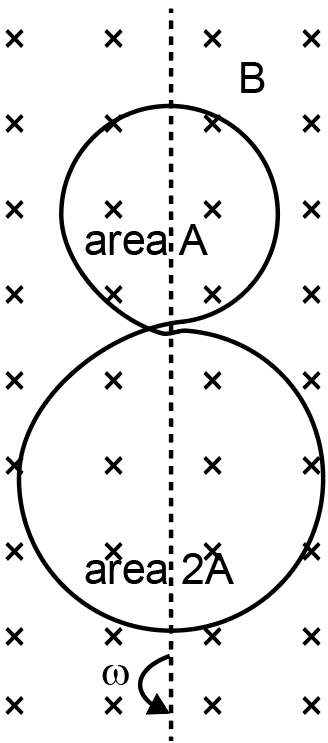

A circular insulated copper wire loop is twisted to form two loops of area A and 2A as shown in the figure. At the point of crossing the wires remain electrically insulated from each other. The entire loop lies in the plane (of the paper). A uniform magnetic field $\vec{B}$ points into the plane of the paper. At t = 0, the loop starts rotating about the common diameter as axis with a constant angular velocity ω in the magnetic field. Which of the following options is/are correct?

The emf induced in the loop is proportional to the sum of the areas of the two loops

The net emf induced due to both the loops is proportional to cos ωt

The rate of change of the flux is maximum when the plane of the loops is perpendicular to plane of the paper

The amplitude of the maximum net emf induced due to both the loops is equal to the amplitude of maximum emf induced in the smaller loop alone

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

emf induced in coop 1 = $\frac{+ d}{dt}$ (BA cos ωt)

2 = $\frac{+ d}{dt}$ (B 2A cos ωt)

ε₁ = + BA ω. sin (ωt)

ε₂ = +B (2A) ω sin (ωt)

so emf will be maximum when. ωt = q = $\frac{π}{2}$

net emf = ε₂ – ε₁ = 2Bw sin ωt – BA sin ωt

ε_net = BA ω sin ωt – BA ω sin ωt

ε_net = BA ω sin ωt
