A convex lens of focal length 15 cm is split into two halves and the two halves are placed at a separation of 120 cm. Between the two halves of convex lens a plane mirror is placed horizontally and at a distance of 4 mm below the principal axis of the lens halves. An object AB of length 2 mm is placed at a distance of 20 cm from one half lens as shown in figure. The final image of the point A is formed at a distance of from the principal axis. Determine the value of n.

Engineering

Physics

Curved Surface Refraction

Reflection at Plane Surface New

Question

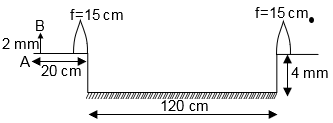

A convex lens of focal length 15 cm is split into two halves and the two halves are placed at a separation of 120 cm. Between the two halves of convex lens a plane mirror is placed horizontally and at a distance of 4 mm below the principal axis of the lens halves. An object AB of length 2 mm is placed at a distance of 20 cm from one half lens as shown in figure. The final image of the point A is formed at a distance of $\frac{n}{3} mm$ from the principal axis. Determine the value of n.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

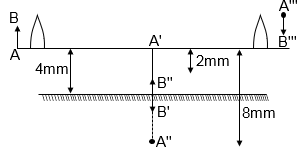

The first half-lens forms the image A'B' (= 6mm).

$∴ \frac{1}{v} - \frac{1}{- 20} = \frac{1}{15} \Rightarrow v = + 60 cm$

$∴$ m₁ = –3

the plane mirror forms the image A"B" with A" located 8 mm below the principal axis. The second half lens forms the image A'''B'''. Now

u = –60 m

⇒ v = +20 cm

$∴ m_{2} = - \frac{1}{3}$

$∴$ A''' is located at 8/3 mm above the principal axis.

$∴$ n = 8
