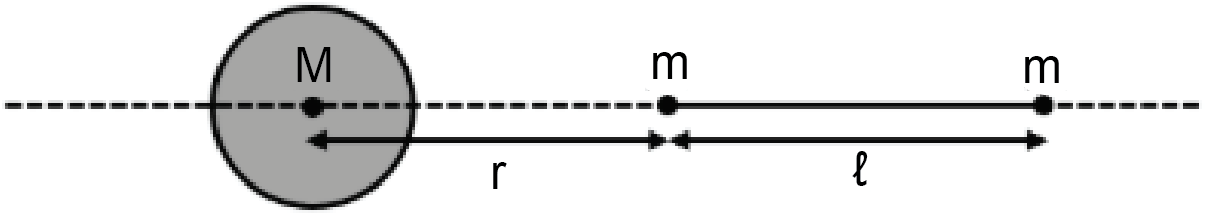

A large spherical mass M is fixed at one position and two identical point masses m are kept on a line passing through the centre of M (see figure). The point masses are connected by a rigid massless rod of length l and this assembly is free to move along the line connecting them. All three masses interact only through their mutual gravitational interaction. When the point mass nearer to M is at a distance r = 3ℓ from M, the tension in the rod is zero for m = k . The value of k is:

Engineering

Physics

Gravitational Force and Field

Question

A large spherical mass M is fixed at one position and two identical point masses m are kept on a line passing through the centre of M (see figure). The point masses are connected by a rigid massless rod of length l and this assembly is free to move along the line connecting them. All three masses interact only through their mutual gravitational interaction. When the point mass nearer to M is at a distance r = 3ℓ from M, the tension in the rod is zero for m = k $(\frac{M}{288})$ . The value of k is:

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

For tension in the rod to be zero.

Both masses should move with same acceleration, only due to gravitation alteraction

$\frac{GMm}{9 ℓ^{2}} - \frac{{Gm}^{2}}{ℓ^{2}} = \frac{GMm}{16 ℓ^{2}} + \frac{{Gm}^{2}}{ℓ^{2}}$

$\frac{GMm}{ℓ^{2}} {\frac{7}{9 \times 16}} = \frac{2 {Gm}^{2}}{ℓ^{2}}$

$m = (\frac{7 M}{288}) = K \frac{M}{288} So K = 7$
