Question

A liquid is placed in a cylindrical glass container of radius R₀. In gravity free space, free surface of liquid has spherical shape of all radius of curvature R₁. Now same liquid is placed in a large spherical glass container of radius R₂ in uniform gravity. If surface of liquid in spherical container is found to be flat, then find the height of liquid surface in spherical container from centre of container.

$\sqrt{\frac{R_{1} R_{2}}{R_{0}}}$

$R_{0} \frac{R_{1}}{R_{2}}$

$\frac{R_{1} R_{2}}{R_{0}}$

$R_{0} \frac{R_{2}}{R_{1}}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Contact angle (θ) will remain same

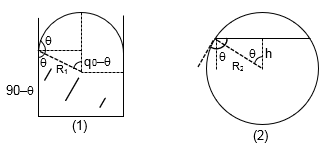

$figure (1) \sin (90 - θ) = \frac{R_{0}}{R_{1}}; cosθ \frac{R_{0}}{R_{1}} . ........ (i)$

$Fig (2) cosθ = \frac{h}{R_{2}} . . . . . . . . . . . . . . . . . . . . (ii); \frac{h}{R_{2}} = \frac{R_{0}}{R_{1}} \Rightarrow h = \frac{R_{0} R_{2}}{R_{1}}$
