Question

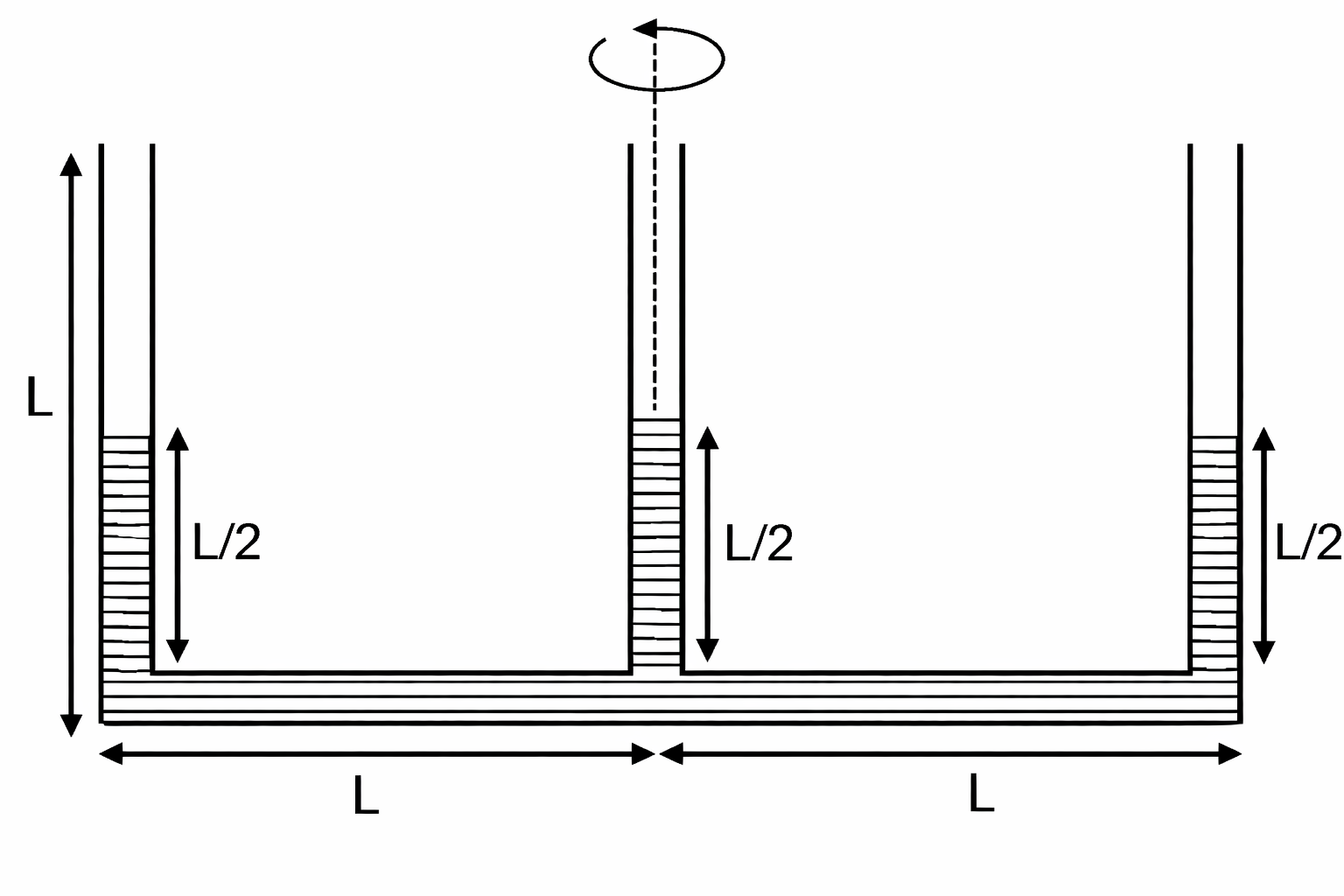

A liquid of density r is filled in tube having three vertical arms each of length L as shown. Initially height of liquid in each arm is L/2. If left vertical arm is now closed and whole system is rotated with angular velocity ω about vertical axis passing through middle arm, the height of liquid in left arm becomes $\frac{5 L}{8} . Given (L = \frac{40}{3} m, ρ = 10^{3} kg / m^{3}, g = 10 m / s^{2}, P_{atm} = 10^{5} N / m^{2})$ , air is treated as ideal gas

Generated image

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

JEE Advance

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Linked Question 1

Find the angular velocity ω

A

$ω = \frac{\sqrt{7}}{2} rad / \sec$

B

$ω = \frac{\sqrt{3}}{4} rad / \sec$

C

$ω = \frac{\sqrt{21}}{4} rad / \sec$

D

ω = 5 rad/sec

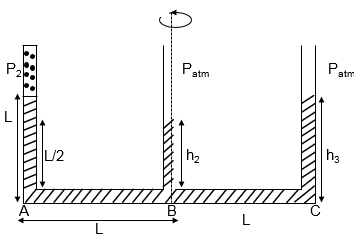

When tube starts rotating

h₁ + h₂ + h₃ = 3 $(\frac{L}{2})$ ................(i)

Let air pressure on left arm now becomes P₂

For fluid AB

P_AA – P_BA = m ω² r_cm

(P₂ + h₁pg) – (P_am + h₂pg) = LPω² $(\frac{L}{2})$ ....(ii)

$(here h_{1} = \frac{5 L}{8})$

fw fluid BC

P_CA – P_BA = mω²r_cm

(P_atm + h₃Pg) – (P_atm + h₂Pg)

$= LP ω^{2} (\frac{L}{2})$ ..............(iii)

For air in left arm

P₂V₂ = P₁ V₁

P₂(L – h₁) = P_atm ; $P_{2} = \frac{P_{atm} \frac{L}{2}}{L - \frac{5 L}{8}}$ ..................(iv)

From (i), (ii), (iii) and (iv) $ω = \frac{\sqrt{21}}{8}$ h₂ = 0

Linked Question 2

The height of liquid in the middle arm

A

$\frac{40}{3} m$

B

$\frac{10}{3} m$

C

zero m

D

$\frac{20}{3} m$

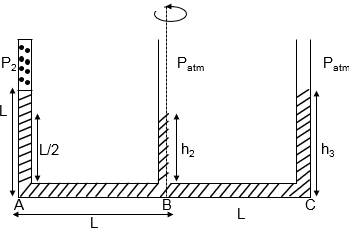

when tube starts rotating

h₁ + h₂ + h₃ = 3 $(\frac{L}{2})$ .........(i)

Let air pressure on left arm now becomes P₂

For fluid AB

P_AA – P_BA = m ω² r_cm

(P₂ + h₁pg) – (P_am + h₂pg) = LPω² $(\frac{L}{2})$ ....(ii)

$(here h_{1} = \frac{5 L}{8})$

fw fluid BC

P_CA – P_BA = mω²r_cm

(P_atm + h₃Pg) – (P_atm + h₂Pg)

$= LP ω^{2} (\frac{L}{2})$ .........(iii)

For air in left arm

P₂V₂ = P₁ V₁

P₂(L – h₁) = P_atm ; $P_{2} = \frac{P_{atm} \frac{L}{2}}{L - \frac{5 L}{8}}$ .........(iv)

From (i), (ii), (iii) and (iv) $ω = \frac{\sqrt{21}}{8}$ h₂ = 0
