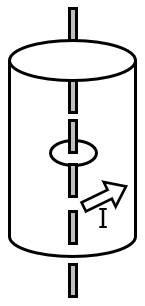

A long circular tube of length 10 m and radius 0.3 m carries a current I along its curved surface as shown. A wire-loop of resistance 0.005 ohm and of radius 0.1 m is placed inside the tube with its axis coinciding with the axis of the tube. The current varies as I = I0 cos (300 t) where I0 is constant. If the magnetic moment of the loop is N µ0 I0 sin (300 t), then 'N' is

Engineering

Physics

Magnetic Flux and Faraday Law and Lenz Law

Solenoid and Toroid

Question

A long circular tube of length 10 m and radius 0.3 m carries a current I along its curved surface as shown. A wire-loop of resistance 0.005 ohm and of radius 0.1 m is placed inside the tube with its axis coinciding with the axis of the tube. The current varies as I = I₀ cos (300 t) where I₀ is constant. If the magnetic moment of the loop is N µ₀ I₀ sin (300 t), then 'N' is

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$B = \frac{μ_{0} I_{0} \cos 300 t}{10}$

$ϕ = \frac{μ_{0} I_{0}}{10} \times 3 .14 \times 0 .01 \cos 300 t$

$ϕ = 3 .14 \times μ_{0} I_{0} \cos 300 t \times 10^{- 3}$

$e = - \frac{dϕ}{dt} = 3 .14 \times 300 μ_{0} I_{0} \sin 300 t \times 10^{- 3}$

$i = \frac{e}{R} = \frac{3 .14 \times 300 μ_{0} I_{0} \sin 300 t \times 10^{- 3}}{0 .005}$

$i = 3 .14 \times 60 μ_{0} I_{0} \sin 300 t$

Magnetic moment
