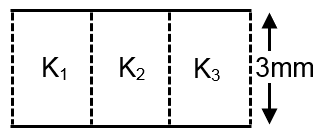

A parallel plate capacitor is of area 6 cm² and a separation 3mm. The gap is filled with three dielectric materials of equal thickness (see figure) with dielectric constants K₁ = 10, K₂ = 12 and K₃ = 14. The dielectric constant of a material which when fully inserted in above capacitor, gives same capacitance would be :

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

C_net = C₁ + C₂ + C₃

$\frac{{kAE}_{0}}{d} = k_{1} (\frac{A}{3}) \frac{E_{0}}{d} + k_{2} (\frac{A}{3}) \frac{E_{0}}{d} + k_{3} (\frac{A}{3}) \frac{E_{0}}{d}$

$k = \frac{k_{1} + k_{2} + k_{3}}{3} = 12$
