Question

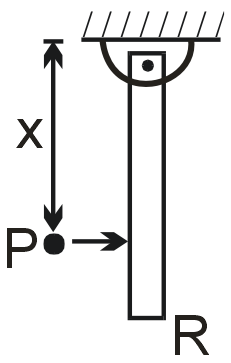

A particle P strikes the rod R perpendicularly as shown. The rod is suspended vertically with upper end hinged.

Arrangement	For the collision
(A) x = $\frac{ℓ}{2}$ , elastic collision	(P) Linear momentum of P, R system increases
(B) x = ℓ, elastic collision	(Q) Linear momentum of P, R system decreases
(C) x = $\frac{ℓ}{2}$ , P sticks to R	(R) KE of the P decreases
(D) x = ℓ, P sticks to R	(S) Angular momentum of the P, R system is conserved about hinge.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

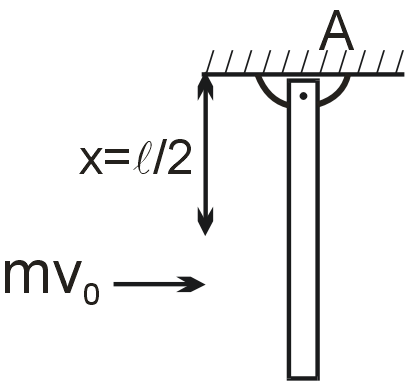

(A) Angular momentum conservation about A
mv₀ $\frac{ℓ}{2}$ = Iw + mv₁ $\frac{ℓ}{2}$ ...(1)

   e = $\frac{\frac{ωℓ}{2} - v_{1}}{v_{0}}$ = 1  ⟹ $\frac{ωℓ}{2}$ – v₁ = v₀   ⟹ v₁ = $\frac{ωℓ}{2}$ – v₀       ...(2)
   Solving (1) & (2)
           v₁ = $\frac{v_{0} [3 m - 4 M]}{[3 m + 4 M]}$ < v₀ ∴ KE of P decreases
           ω = $\frac{12 {mv}_{0}}{l [3 m + 4 M]}$
   On solving linear momentum of P₁R system decreases.
(B)    A.M about A
   mv₀ℓ = Iω + mv₁ℓ   ...(1)
   I = $\frac{ω l - v_{1}}{v_{0}}$     ...(2)
Solving (1) & (2)
ω = $\frac{6 {mv}_{0}}{l [3 m + M]}$ , v₁ = $\frac{v_{0} [3 m - M]}{[3 m + M]}$ < v₀   ∴ KE decreases

On solving linear momentum increases
(C)   A.M. about A
mv₀ $\frac{ℓ}{2}$ = Iω + mv₁ $\frac{ℓ}{2}$        ...(1)    $[I = \frac{M l^{2}}{3}]$
       $\frac{ω l}{2}$ – v₁ = 0           ...(2)
   Solving,
     ω = $\frac{6 {mv}_{0}}{l [3 m + 4 M]}$ ,   v₁ = $\frac{3 {mv}_{0}}{[3 m + 4 M]}$ < v₀   ∴ KE decrease
∴  Linear momentum of P₁R system decreases
(D)  A.M. about A
mv₀ℓ = Iω + mv₁ℓ       ...(1)   $[I = \frac{M l^{2}}{3}]$
ωℓ = v₁               ...(2)
Solving,
ω = $\frac{3 {mv}_{0}}{[M + 3 m] l}$ , v₁ = $\frac{3 {mv}_{0}}{[M + 3 m]}$ < v₀     ∴ KE decreases
∴ Linear momentum increases
