Magnetic Moment

Question

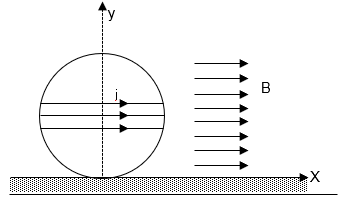

A person wants to roll a solid non-conducting spherical ball of mass m and radius r on a surface whose coefficient of static friction is µ. He placed the ball on the surface wrapped with n turns of closely packed conducting coils of negligible mass at the perimeter. By some arrangement he is able to pass a current i through the coils either in the clockwise direction or in the anticlockwise direction. A constant horizontal magnetic field $\vec{B}$ is present throughout the space as shown in the fig. (Assume µ is large enough to help rolling motion)

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

JEE Advance

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Linked Question 1

If current i is passed through the coils the initial torque in the coil is

A

$- {πnir}^{2} B \hat{k}$

B

${πnir}^{2} B \hat{j}$

C

${πnir}^{2} B \hat{k}$

D

$- {πnir}^{2} B \hat{j}$

$\vec{τ} = \vec{M} \times \vec{B}; \vec{M} = {nπIr}^{2} \hat{j}; \vec{B} = B \hat{i}$

$\vec{τ} = {nπIr}^{2} B (- \hat{k})$

Linked Question 2

The angular velocity of the ball when it has rotated through an angle θ is (θ < 180°), is

A

$\sqrt{\frac{5}{7} \frac{πniB}{m} sinθ}$

B

$\sqrt{\frac{5}{14} \frac{πniB}{m} cosθ}$

C

$\sqrt{\frac{5}{14} \frac{πniB}{m} sinθ}$

D

$\sqrt{\frac{10}{7} \frac{πniB}{m} sinθ}$

${\vec{τ}}_{net} = | (\vec{M} \times \vec{B}) - \vec{f} \times \vec{R} | = \frac{2}{5} {MR}^{2} α$

$\Rightarrow \int_{0}^{θ} {nπIR}^{2} Bcosθdθ - f R = \frac{2}{5} {MR}^{2} α$

f = Ma = MRα

${nπIR}^{2} B sinθ = \frac{7}{5} {MR}^{2} ω \frac{ω^{2}}{2}$

$ω = \sqrt{\frac{10}{7} \frac{πniBsinθ}{m}}$
