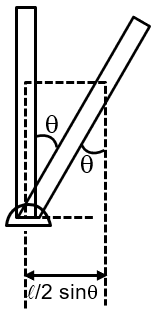

A slender uniform rod of mass M and length l is pivoted at one end so that it can rotate in a vertical plane (see figure). There is negligible friction at the pivot. The free end is held vertically above the pivot and then released. The angular acceleration of the rod when it makes an angle θ with the vertical is:

Engineering

Physics

Torque and Equilibrium of Rigid Bodies

Question

$\frac{2 g}{3 ℓ} cosθ$

$\frac{2 g}{3 ℓ} sinθ$

$\frac{3 g}{2 ℓ} cosθ$

$\frac{3 g}{2 ℓ} sinθ$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$τ = mg (\frac{ℓ}{2} sinθ) = \frac{1}{3} {mℓ}^{2} (α)$

$\frac{3 gℓsinθ}{2 (\frac{1}{3} ℓ^{2})} = α$

$\frac{3 gsinθ}{2 ℓ} = α$
