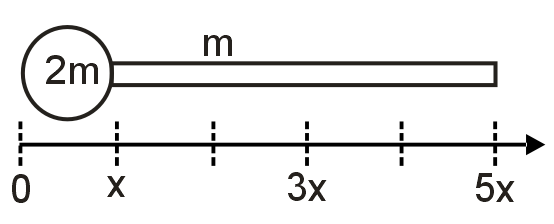

A solid sphere of diameter x and mass 2m is fastened to a long thin rod of length 4x and mass m as shown. Where is the location of the center of mass of this system?

A

$\frac{4}{3} x$

B

x

C

$\frac{5}{3} x$

D

$\frac{3}{2} x$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

JEE Advance

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$\frac{2 m \times \frac{x}{2} + mx \times 3 x}{2 m + m} = \frac{4}{3} x$ .
