Question

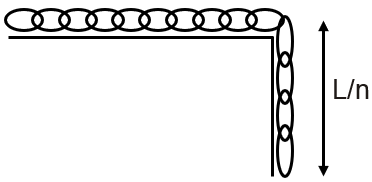

A uniform cable of mass 'M' and length 'L' is placed on a horizontal surface such that its ${(\frac{1}{n})}^{th}$ part is hanging below the edge of the surface. To lift the hanging part of the cable upto the surface, the work done should be

$\frac{2 MgL}{n^{2}}$

nMgL

$\frac{MgL}{2 n^{2}}$

$\frac{MgL}{n^{2}}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$Mass of the hanging part = \frac{M}{n}$

$h_{COM} = \frac{L}{2 n}$

Work done $W = {mgh}_{COM} = (\frac{M}{n}) g (\frac{L}{2 n}) = \frac{MgL}{2 n^{2}}$
