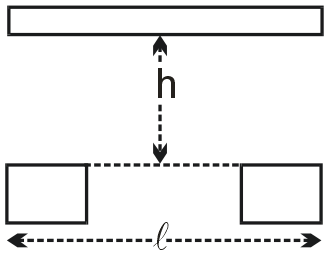

A uniform horizontal rod of length ℓ falls vertically from height h on two identical blocks placed symmetrically below the rod as shown in figure. The coefficients of restitution are e₁ and e₂. The maximum height through which the centre of mass of the rod will rise after bouncing off the blocks is

$\frac{4 h}{({e_{1}}^{2} + {e_{2}}^{2})}$

$\frac{{(e_{1} + e_{2})}^{2} h}{4}$

$\frac{{(e_{1} + e_{2})}^{2} h}{2}$

$\frac{h}{(e_{1} + e_{2})}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

A uniform rod falls vertically and strikes two identical blocks symmetrically. The coefficients of restitution are e₁ and e₂. The velocity of the center of mass (COM) after collision is determined by the average of the impulses from both ends. The vertical rebound velocity v of the COM is given by v = (e₁ + e₂)√(2gh)/2, since the impact velocity is √(2gh). The maximum height H is found using v² = 2gH.

Substituting: H = v²/(2g) = [(e₁ + e₂)² * 2gh] / (8g) = (e₁ + e₂)²h/4

Final Answer: $\frac{{(e_{1} + e_{2})}^{2} h}{4}$
