A uniform solid cylinder of mass "m" rests on two horizontal planks as shown in figure. A thread is wound on the cylinder. The hanging end of the thread is pulled vertically up with a force F. The force F is applied at its maximum value which still does not bring about any sliding of the cylinder, if coefficient of friction between cylinder and plank is equal to μ. What is the maximum acceleration of the axis of the cylinder?

Engineering

Physics

Rolling

Question

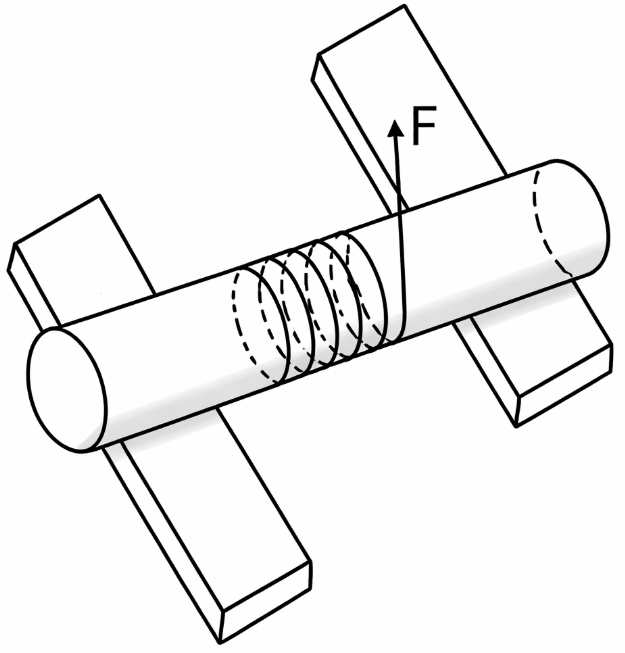

A uniform solid cylinder of mass "m" rests on two horizontal planks as shown in figure. A thread is wound on the cylinder. The hanging end of the thread is pulled vertically up with a force F. The force F is applied at its maximum value which still does not bring about any sliding of the cylinder, if coefficient of friction between cylinder and plank is equal to μ. What is the maximum acceleration of the axis of the cylinder?

A

$\frac{3 μg}{3 + 2 μ}$

B

$\frac{2 μg}{3 + 2 μ}$

C

$\frac{3 μg}{2 + 3 μ}$

D

$\frac{2 μg}{2 + 3 μ}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

JEE Advance

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

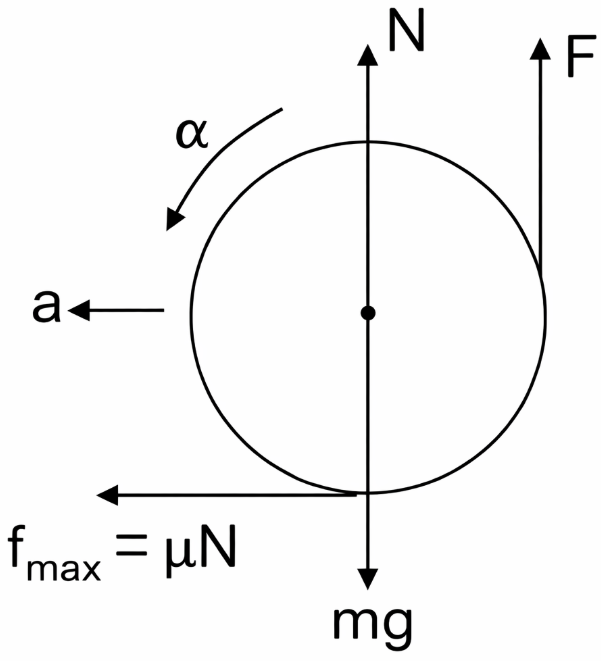

As the force F is applied, the cylinder tends to rotate in anticlockwise direction with point of contact C tending to move to right.

τ = Iα

$(F - f) r = (\frac{{mr}^{2}}{2}) α$ .... (1)

f = ma ... (2)

a = αr ...(3)

(1) / eqn. (2)

$\frac{F - f}{f} = \frac{r . α}{2 a} = \frac{1}{2}$

$F = \frac{3}{2} f \Rightarrow F_{max} = \frac{3}{2} f_{\max}$

f_max = μN = μ(mg – F)

$F_{max} = \frac{3}{2} . μ (mg - F_{\max})$

$F_{max} = \frac{3 μmg}{2 + 3 μ}$

$a_{max} = \frac{f_{\max}}{m} = \frac{2}{3 m} F_{\max}$

$a_{max} = \frac{2 . μg}{2 + 3 μ}$
