A wooden block of mass m1 kg accelerates at 10 ms–2 when a force of 5 N acts on it. Another block of mass m2 kg accelerates at 20 ms–2 when same force acts on it. Find the acceleration if both the blocks are tied together and same force acts on their combination :

Foundation

Physics Foundation

Force and Newtons Law of Motion

Question

A wooden block of mass m₁ kg accelerates at 10 ms^–2 when a force of 5 N acts on it. Another block of mass m₂ kg accelerates at 20 ms^–2 when same force acts on it. Find the acceleration if both the blocks are tied together and same force acts on their combination :

4.67 ms^–2

none of these

1.67 ms^–2

6.67 ms^–2

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

(a)

(b)

        (c)

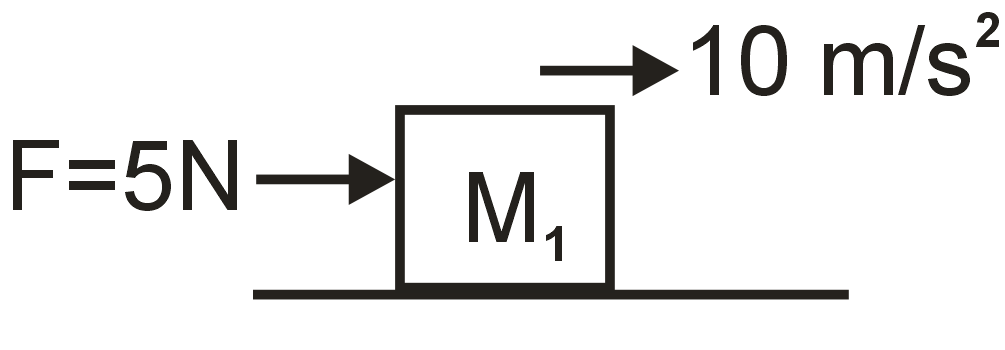

   From (a)
$F = M_{1} a_{1}, M_{1} = \frac{5}{10} = 0 .5 kg$

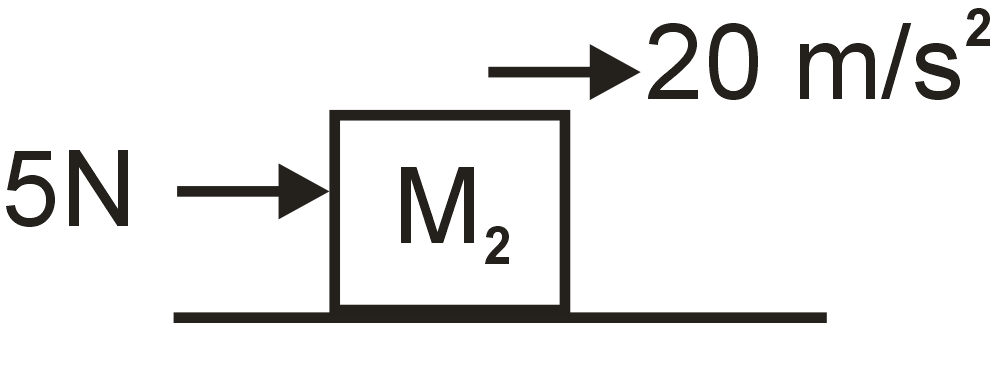

   From (b)
$F = M_{2} a_{2}, M_{2} = \frac{5}{20} = 0 .25 kg$

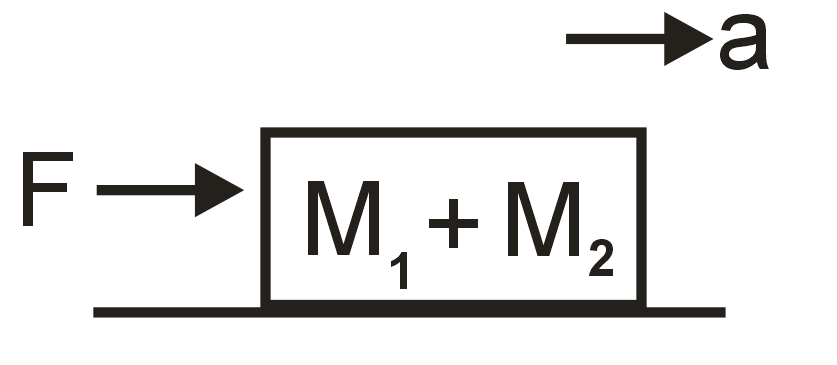

   From (c)
$F = (0 .5 + 0 .25) a, a = \frac{5}{0 .75} = 6 .67 m / s^{2}$
