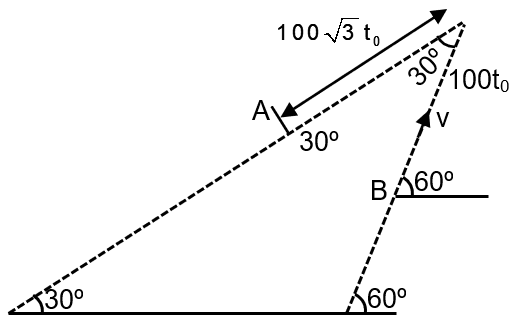

Airplanes A and B are flying with constant velocity in the same vertical plane at angles 30° and 60° with respect to the horizontal respectively as shown in figure. The speed of A is . At time t = 0s, an observer in A finds B at a distance of 500 m. This observer sees B moving with a constant velocity perpendicular to the line of motion of A. If at t = t0, A just escapes being hit by B, t0 in seconds is :

Engineering

Physics

Relative Motion

Question

Airplanes A and B are flying with constant velocity in the same vertical plane at angles 30° and 60° with respect to the horizontal respectively as shown in figure. The speed of A is $100 \sqrt{3} {ms}^{- 1}$ . At time t = 0s, an observer in A finds B at a distance of 500 m. This observer sees B moving with a constant velocity perpendicular to the line of motion of A. If at t = t₀, A just escapes being hit by B, t₀ in seconds is :

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$V_{BA} = {\vec{V}}_{B} - {\vec{V}}_{A}$

⇒ v cos 30° $= 100 \sqrt{3}$

⇒ v = 200 m/s

V_BA = v sin 30° = 100 m/s

t = S_BA/V_BA = 5 sec.
