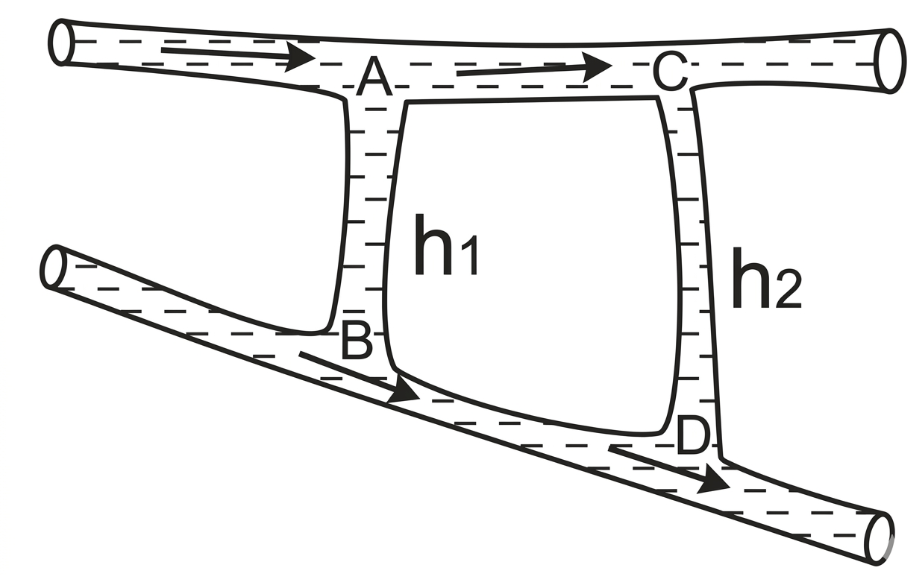

An ideal liquid is flowing in two pipes, one is inclined and second is horizontal. Both the pipes are connected by two vertical tubes, of length h1 and h2 as shown in the figure. The flow is streamlined in both the pipes. If velocity of liquid at A, B, C are 2 m/s, 4 m/s and 4m/s respectively. the velocity at D will be m/s

Engineering

Physics

BernoulIis Equation and Equation of Continuity

Question

An ideal liquid is flowing in two pipes, one is inclined and second is horizontal. Both the pipes are connected by two vertical tubes, of length h₁ and h₂ as shown in the figure. The flow is streamlined in both the pipes. If velocity of liquid at A, B, C are 2 m/s, 4 m/s and 4m/s respectively. the velocity at D will be $2 \sqrt{N}$ m/s^–1. Fill the value of N in OMR

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$P_{1} + \frac{1}{2} {ρv}_{1}^{2} = P_{2} + \frac{1}{2} {ρv}_{2}^{2}$

$P_{1} - P_{2} = \frac{1}{2} ρ (v_{2}^{2} - v_{1}^{2}) = \frac{1}{2} ρ (16 - 4) = \frac{1}{2} ρ \times 12 = 6 ρ$

$P_{1} + ρ {gh}_{1} + ρ g (h_{2} - h_{1}) + \frac{1}{2} {ρv}_{3}^{2} = P_{2} + {ρgh}_{2} + \frac{1}{2} {ρv}_{4}^{2}$

$6 ρ + \frac{1}{2} {ρv}_{3}^{2} = \frac{1}{2} {ρv}_{4}^{2}$
