Question

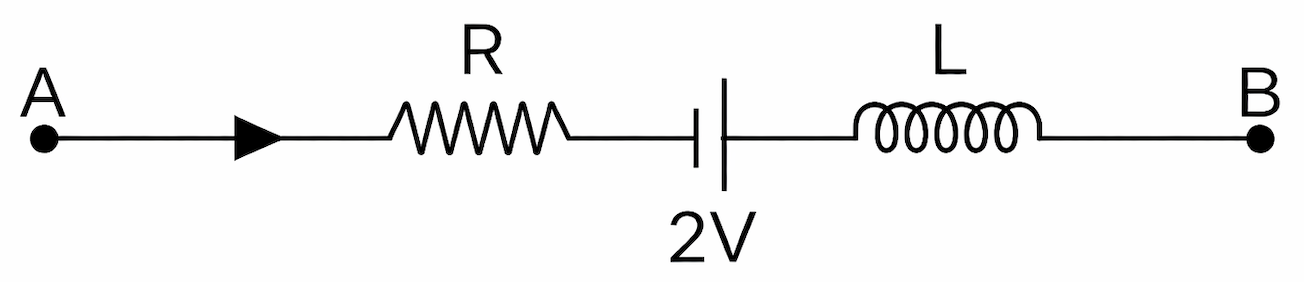

At an instant of time, the current in a part of the circuit is found to be 2A and increasing at the rate of 1 A-s^–1. The measured voltage V_AB between A and B is 8V. But when the current is 2A, decreasing at the rate of 1 A-s^–1, the voltage V_AB is found to be 4V. What is the ratio $\frac{R}{L}$ in s^–1?

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$v_{A} - iR + 2 - \frac{Ldi}{dt} = v_{B}$

$v_{A} - v_{B} = 8 = iR - 2 + L \frac{di}{dt} = 2 R - 2 + L \times 1$

v_A' – v_B' = 4 = 2R – 2 – L × 1

$L = 2 H, R = 4 Ω \Rightarrow \frac{R}{L} = 2$
