Charges Q, 2Q and 4Q are uniformly distributed in three dielectric solid spheres 1, 2 and 3 of radii R/2, R and 2R respectively, as shown in figure. If magnitudes of the electric fields at point P at a distance R from the centre of spheres 1, 2 and 3 are E1, E2 and E3 respectively, then :

Engineering

Physics

Electric Field and Charged Particle in Electric Field

Question

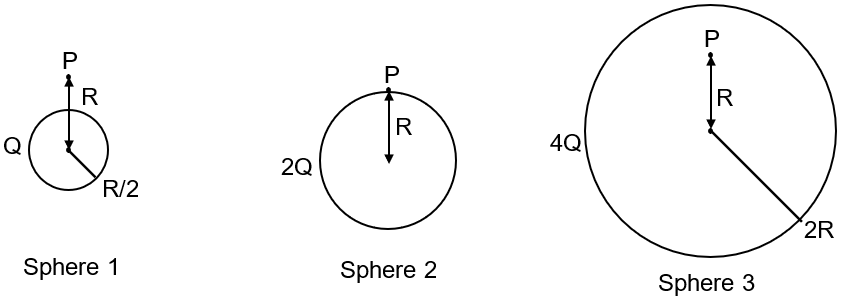

Charges Q, 2Q and 4Q are uniformly distributed in three dielectric solid spheres 1, 2 and 3 of radii R/2, R and 2R respectively, as shown in figure. If magnitudes of the electric fields at point P at a distance R from the centre of spheres 1, 2 and 3 are E₁, E₂ and E₃ respectively, then :

E₁ > E₂ > E₃

E₂ > E₁ > E₃

E₃ > E₂ > E₁

E₃ > E₁ > E₂

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$\frac{kQ}{R^{2}} = E_{1}$

$E_{2} = \frac{k \times 2 Q}{R^{2}} = \frac{2 kQ}{R^{2}}$

$E_{3} = \frac{k 4 Q \times R}{{(2 R)}^{3}} = \frac{kQ}{2 R^{2}}$
