Consider a Young's double slit experiment as shown in figure. What should be the slit separation d in terms of wavelength λ such that the first minima occurs directly in front of the slit (S1)?

Engineering

Physics

Intereference New

Question

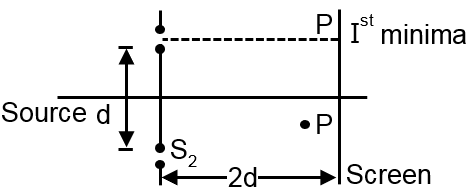

Consider a Young's double slit experiment as shown in figure. What should be the slit separation d in terms of wavelength λ such that the first minima occurs directly in front of the slit (S₁)?

$\frac{λ}{(5 - \sqrt{2})}$

$\frac{λ}{(\sqrt{5} - 2)}$

$\frac{λ}{2 (5 - \sqrt{2})}$

$\frac{λ}{2 (\sqrt{5} - 2)}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$\sqrt{{(2 d)}^{2} + {(d)}^{2}} - 2 d = \frac{λ}{2}$

$\Rightarrow (\sqrt{5} - 2) d = \frac{λ}{2}$

$\Rightarrow d = \frac{λ}{2 (\sqrt{5} - 2)}$
