Question

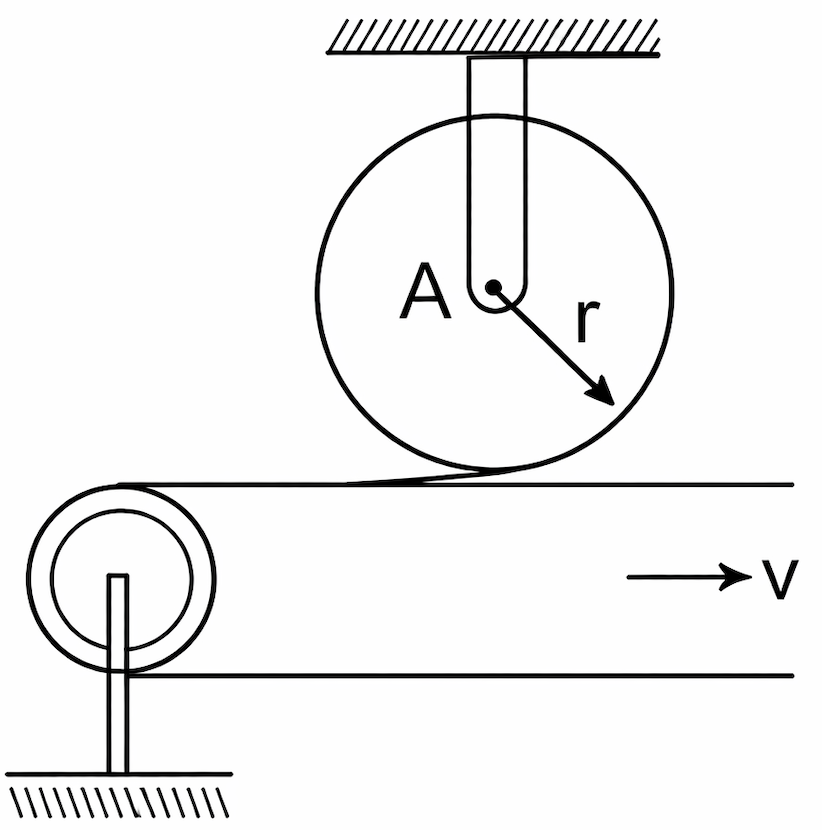

Disk A has mass of 4 kg and a radius r = 75 mm. It is at rest when placed in contact with the belt, which moves at a constant speed v = 18 m/s. μk = 0.25 between the disk and the belt. If the normal reaction by the belt on the disk is equal to the weight of the disc, then the number of revolutions executed by the disk before it reach as a constant angular velocity is 27βπ . Find β.



JEE Advance
College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Solution
Verified BY
Verified by Zigyan

Torque about A

R(μ mg)=mR22 . α

2μgR=α

2 × 0.25 × 10R=α

α=(5R)

at constant angular speed

ω=(vR)

(vR)2= 2α(2πn)

n=(v24απR2)=18 × 184 × 5Rπ

n=(18 × 1820Rπ)=18 × 1820 × 75 × 10−3×π

n=18 × 18 × 10320 × 75 × π= (6 × 18 × 10320 × π × 25)

n=(6 × 18 × 4π × 2)

n=36 π 6π=216π
