Question

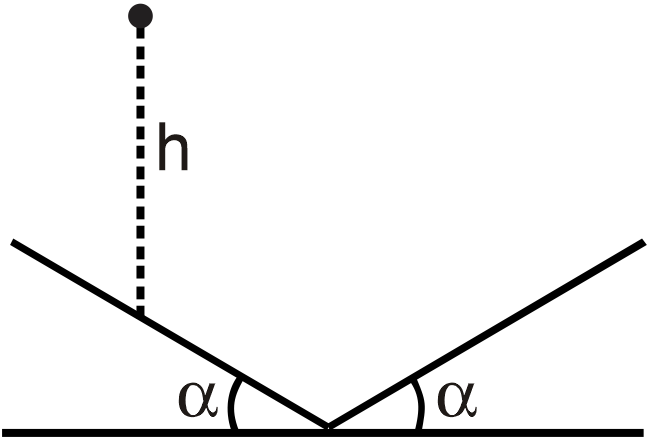

Figure shows two inclined planes. A ball released from height h falls on to the left plane and is reflected from it. After four perfectly elastic collisions on the planes the ball arrives at the initial starting point. Find the time elapsed between start and arrival if α = 30° and h = 5 m.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

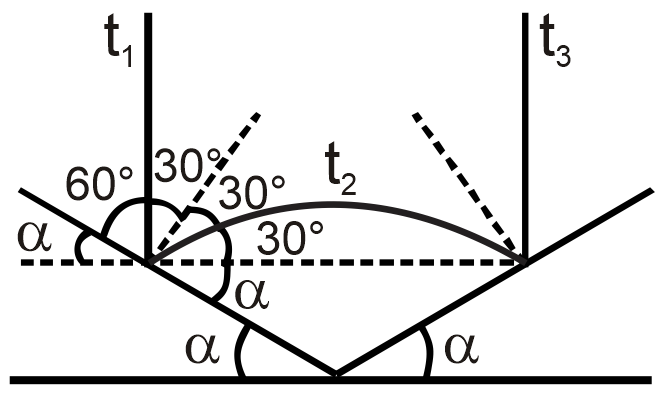

T = 2t₁ + 2t₂ + 2t₃

$t_{1} = t_{3} = \sqrt{\frac{2 h}{g}} = 1 \sec$

$t_{2} = \frac{2 \times \sqrt{2 gh} \sin 30^{\circ}}{g} = 1 \sec$

T = 2 + 2 + 2 = 6 sec.
