Question

For the circuit shown

current through the branch CD is 15 amp.

potential difference between B and D is 15 volt.

potential difference between B and D is 10 volt.

current through the battery is 20 amp.

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

⇒ R_eq = 3/2

$i = \frac{30}{3 / 2} = 20 Amp .$

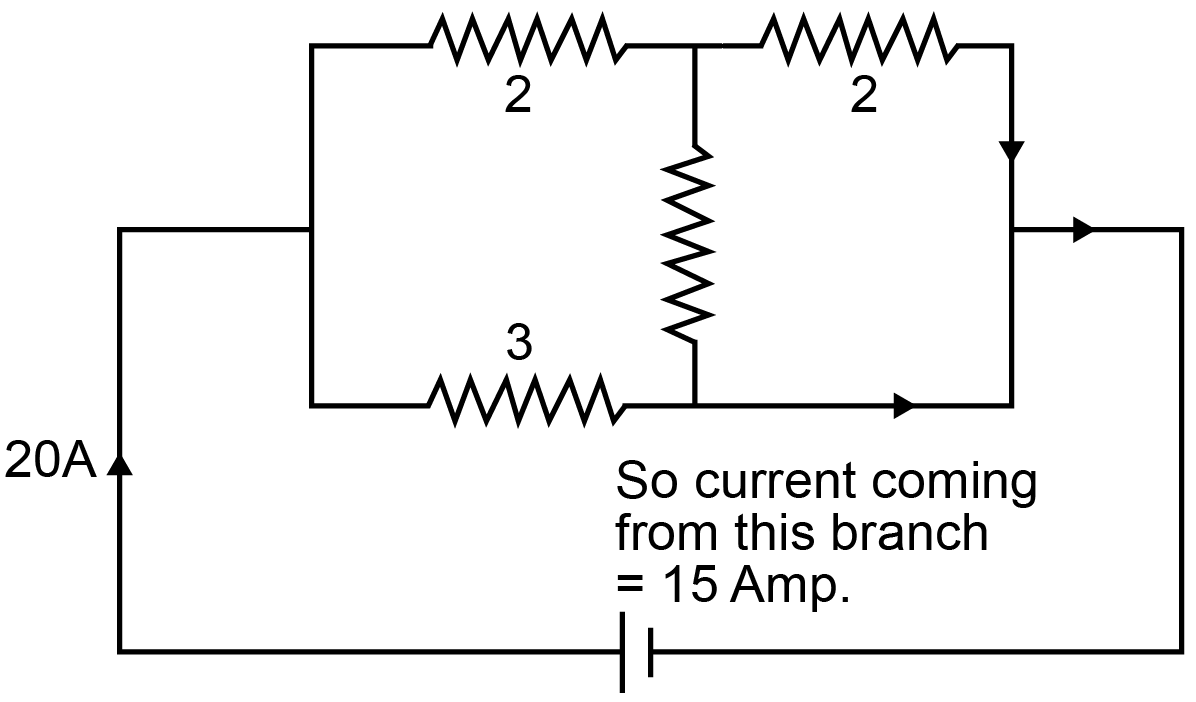

From figure current through

B → D branch = 5 Amp.
