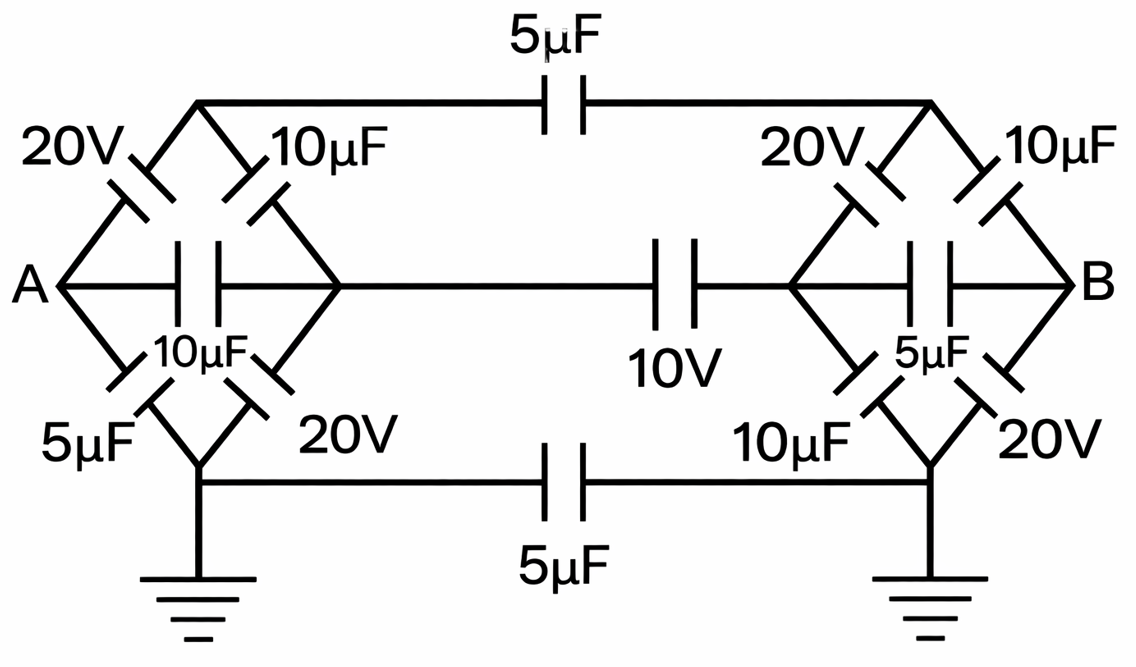

For the circuit shown in figure, choose the correct statement(s) ?

A

The potential difference between A and B is 10V

B

The potential at point A is $\frac{5}{3} V$

C

The potential difference between A and B is 5V

D

The potential at point A is $\frac{10}{3} V$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

JEE Advance

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

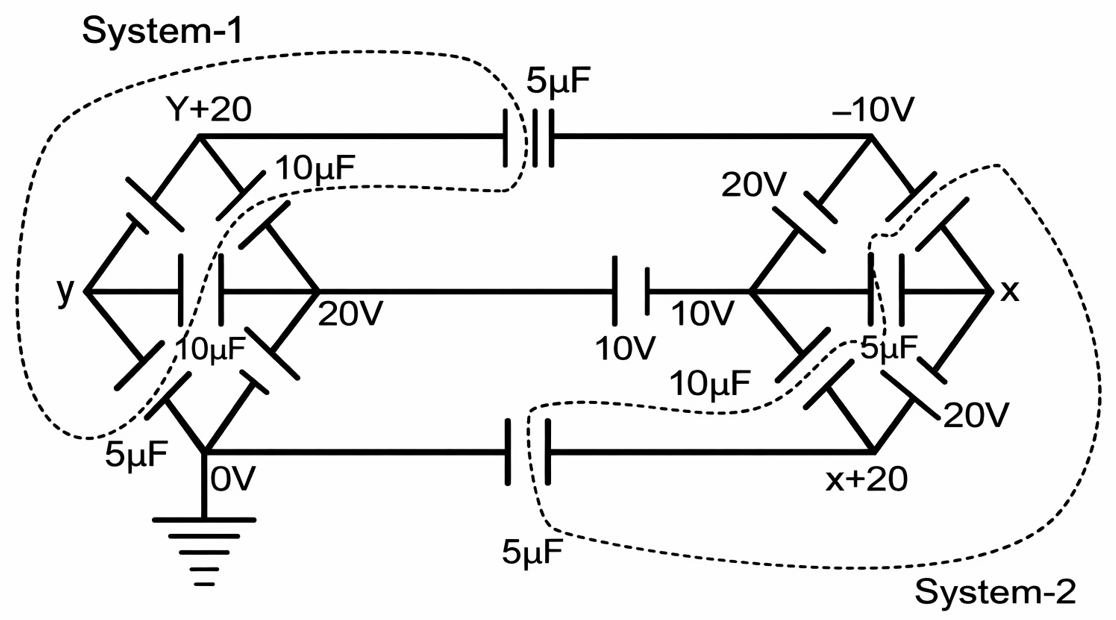

conservation of charge in system-1

5 (y – 0) + 10 (y – 20) + 10 [(y + 20) – 20] + 5 [(y + 20) – (–10)] = 0

$y = \frac{5}{3} V$

conservation of charge in system - 2

5 [ (x + 20) – 0] + 10 [(x + 20) – 10] + 5 [x – 10] + 10 [x – (– 10)] = 0

$x = - \frac{25}{3} V$

${Thus V}_{A} - V_{B} = \frac{5}{3} - (\frac{- 25}{3}) = 10 volts$

2N = 10 ⇒ N = 5
