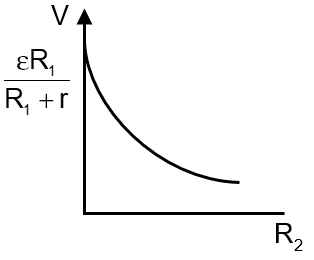

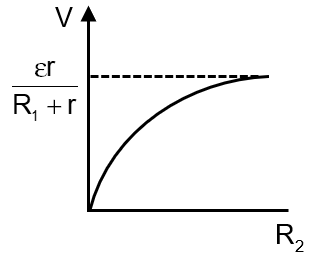

In the circuit shown, R₂ is varied from zero to infinity, keeping other values constant. Which of the following graph is/are correct?

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

If R₂ = 0 V = 0

If $R_{1} \to_{}^{} \infty V = \frac{{εR}_{1}}{R_{1} + r}$

Now if R₂ = 0 ; $I_{2} = \frac{ε}{R}; I_{1} = 0$

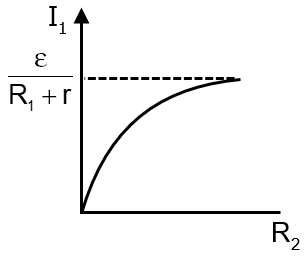

and If $R_{2} \to_{}^{} \infty; I_{2} = 0; I_{1} = \frac{ε}{R_{1} + r}$
