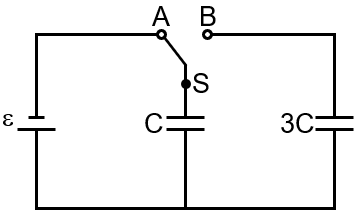

In the figure shown, after the switch 'S' is turned from position 'A' to position 'B', the energy dissipated in the circuit in terms of capacitance 'C' and total charge 'Q' is:

Engineering

Physics

Circuit Analysis Having Capacitor Only

Question

$\frac{5}{8} \frac{Q^{2}}{C}$

$\frac{3}{4} \frac{Q^{2}}{C}$

$\frac{3}{8} \frac{Q^{2}}{C}$

$\frac{1}{8} \frac{Q^{2}}{C}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Before switch is shifted:

Energy stored,

$U_{i} = \frac{1}{2} {CE}^{2}$

and charge stored,

Q = CE

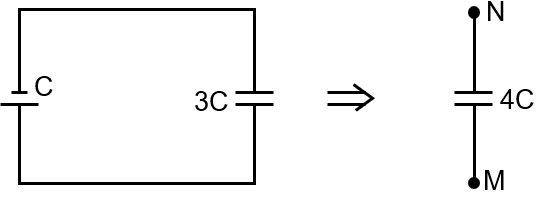

After switch is shifted:

$V_{M} - V_{N} = \frac{Q}{4 C} = \frac{CE}{4 C} = \frac{E}{4}$

$Energy stored, U_{f} = \frac{1}{2} (4 C) {(\frac{E}{4})}^{2} = \frac{1}{8} {CE}^{2}$

$Energy dissipated = U_{i} - U_{f} = \frac{3}{8} {CE}^{2}$
