Light of photon energy hv is incident on a metallic plate having work function φ to eject electrons. The most energetic electrons are then allowed to enter in a region of uniform magnetic field as shown in figure. The electrons are projected in x-z plane making an angle θ with the x-axis. Pitch of the helix described by an electron is found to be P. Take mass of electron as m and charge as q. Then

Engineering

Physics

Photoelectric Effect Einsteins Equation

Motion of Charged Particle in Uniform Magnetic Field

Question

Light of photon energy hv is incident on a metallic plate having work function φ to eject electrons. The most energetic electrons are then allowed to enter in a region of uniform magnetic field $\vec{B} = B_{0} \hat{i}$ as shown in figure. The electrons are projected in x-z plane making an angle θ with the x-axis. Pitch of the helix described by an electron is found to be P. Take mass of electron as m and charge as q. Then

$P = \frac{2 πcosθ \sqrt{2 (hν - ϕ) m}}{{qB}_{0}}$

If the electron is crossing origin at t = 0, then the z coordinate of the electron as a function of time t is $\frac{- \sqrt{2 m (h v - ϕ)}}{{qB}_{0}} \times sinθ \times \sin [\frac{{qB}_{0} t}{m}]$

If the electron is crossing origin at t = 0, then the z coordinate of the electron as a function of time t is $\frac{\sqrt{2 m (h v - ϕ)}}{{qB}_{0}} \times sinθ \times \sin [\frac{{qB}_{0} t}{m}]$

$P = \frac{2 πm}{{qB}_{0}} \sqrt{(h v - ϕ)}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

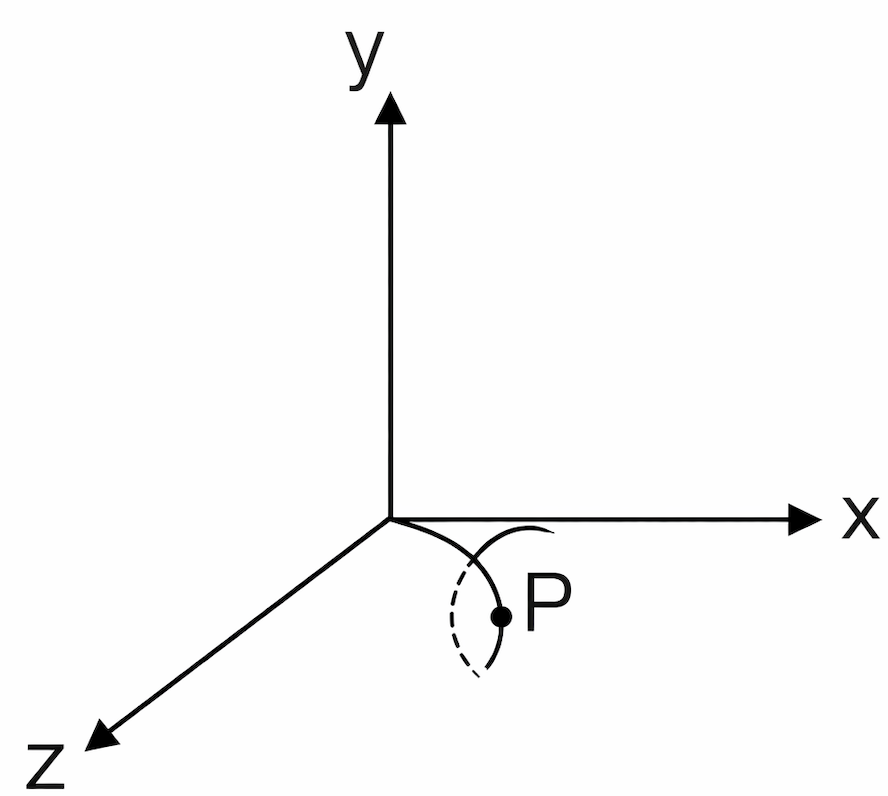

At any instant of time 't' the location of electron is shown as P. In two dimensional view of electron in y-z plane

$v = \sqrt{\frac{2 KE}{m}} = \sqrt{\frac{2 (h v - φ)}{m}}$

$p = v cos θ \times \frac{2 πm}{{qB}_{0}}$

⇒ pqB₀ = 2πm v cos θ

$\Rightarrow {pqB}_{0} = 2 π cos θ . m . \sqrt{\frac{2 (h v - φ)}{m}}$

$\Rightarrow {pqB}_{0} = 2 π cos θ \sqrt{2 m (h v - φ)}$

x - coordinate, x = v cos θ × t

y = – [R – R cos ωt

z = R sin ωt

$z = \frac{mvsinθ}{{qB}_{0}} \times \sin [\frac{{qB}_{0}}{m} t]$

$z = \frac{\sqrt{2 m (h v - φ)}}{{qB}_{0}} \times sinθ \times \sin [\frac{{qB}_{0} t}{m}]$
