Question

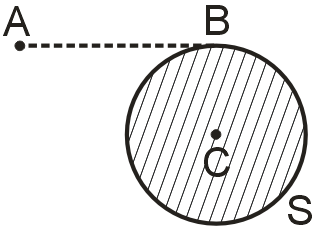

S is a solid neutral conducting sphere. A point charge q of 1 × 10^–6C is placed at point A. C is the centre of sphere and AB is a tangent. BC = 3m and AB = 4m.

The electric potential at B due to induced charges on the sphere is – 0.45 kV.

The electric potential of the conductor is 1.8 kV

The electric potential of the conductor is 2.25 kV

The electric potential at B due to induced charges on the sphere is 0.45 kV.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

AC = 5 m
V = $\frac{kq}{AC} = \frac{9 \times 10^{9} \times 1 \times 10^{- 6}}{5}$ = 1.8 × 10³ = 1.8 kV
V_B = (V_B)_{due to q} + (V_B)_i (V_B)_i = Potential at B due to induced charge
$∴$ 1.8 × 10³ = $\frac{kq}{AB}$ + (V_B)_i
1.8 × 10³ = 2.25 × 10³ + (V_B)_i
(V_B)_i = –0.45 kV
