Seven capacitors, each of capacitance 2μF, are to be connected in a configurationto obtain an effective capacitance of \left(\right. \frac{6}{13} \left.\right) μF. Which of the combinations, shown in figures below, will achieve the desired value?

Engineering

Physics

Circuit Analysis Having Capacitor Only

Question

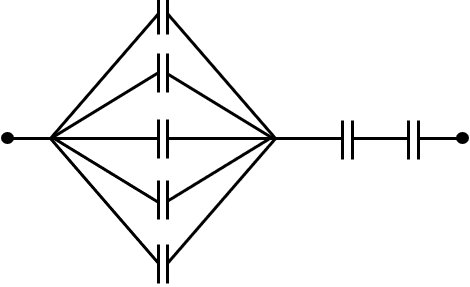

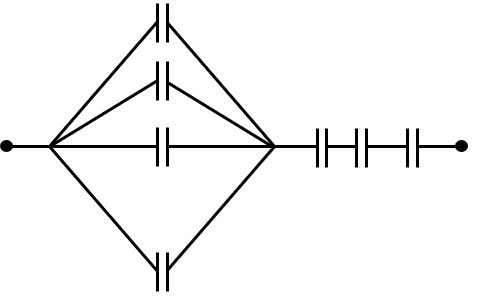

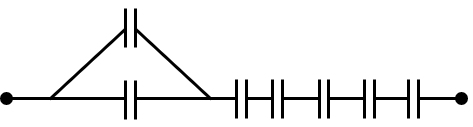

Seven capacitors, each of capacitance 2μF, are to be connected in a configurationto obtain an effective capacitance of $(\frac{6}{13})$ μF. Which of the combinations, shown in figures below, will achieve the desired value?

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$C_{aq} = \frac{6}{13} μF$

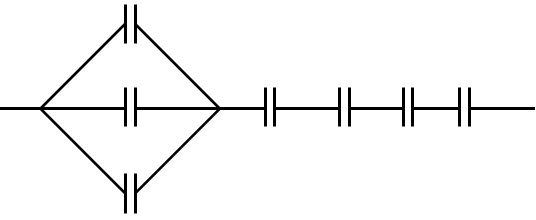

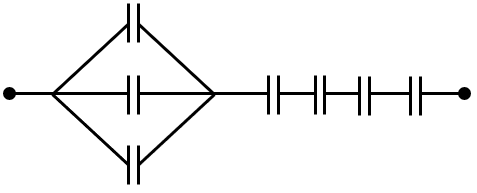

Therefore three capacitors most be in parallel to get 6 in

$\frac{1}{C_{eq}} = \frac{1}{3 C} + \frac{1}{C} + \frac{1}{C} + \frac{1}{C} + \frac{1}{C}$

$C_{eq} = = \frac{3 C}{13} = \frac{6}{13} μF$
