Question

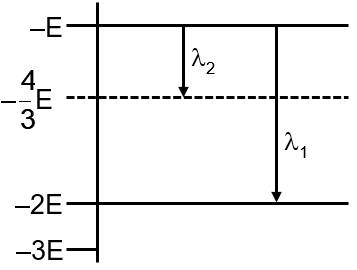

Some energy levels of a molecule are shown in the figure. The ratio of the wavelengths r = $\frac{λ_{1}}{λ_{2}}$ , is given by

$r = \frac{1}{3}$

$r = \frac{4}{3}$

$r = \frac{3}{4}$

$r = \frac{2}{3}$

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

${ΔE}_{2} = \frac{1}{3} E$

$∆$ E₁ = E

$\frac{λ_{C}}{λ_{2}} = \frac{1}{3} E$ ....(1)

$\frac{λ_{C}}{λ_{1}} = E$ .....(2)

$r = \frac{λ_{1}}{λ_{2}} = \frac{E / 3}{E} = \frac{1}{3}$
