Question

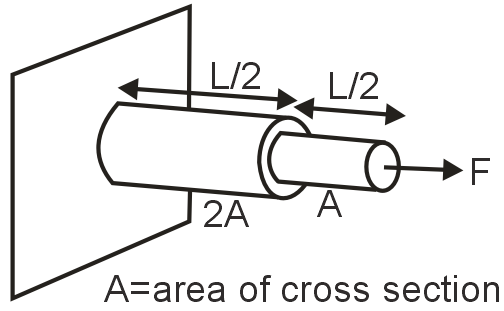

The bar shown in the figure is made of a single piece of material. It is fixed at one end. It consists of two segments of equal length $\frac{L_{0}}{2}$ but different cross-sectional area A and 2A. What is the change in length of the entire system under the action of an axial force F. Consider the shape of joint to remain circular. (Given : y is young's modulus).

$\frac{3 FL}{8 Ay}$

$\frac{3 FL}{2 Ay}$

None of these

$\frac{3 FL}{4 Ay}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

F = $\frac{YA}{L / 2} \cdot {ΔL}_{1}$ ∴ ΔL₁+ ΔL₁ = $\frac{3 FL}{4 YL}$
F = $\frac{Y \cdot 2 A}{L / 2} \cdot {ΔL}_{2}$
