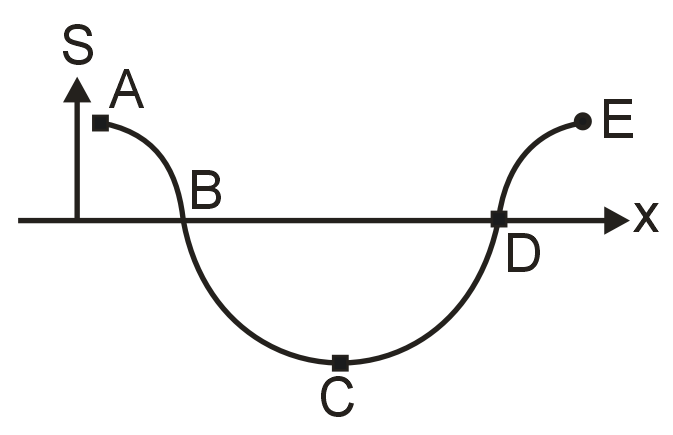

The figure represents a longitudinal wave travelling in positive x-direction. Then

Engineering

Physics

Displacement and Pressure Wave Equation of Sound

Prograssive Wave Equation

Reflection Refraction and Superposition of Wave

Question

The figure represents a longitudinal wave travelling in positive x-direction. Then

part CDE represents region of compression

part ABC represents region of rarefaction

part CDE represents region of rarefaction

part ABC represents region of compression

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$dp = - β \frac{dy}{dx} \Rightarrow ABC$ has negative slope hence, represent compression, while CDE has positive slope hence, represents rarefaction
