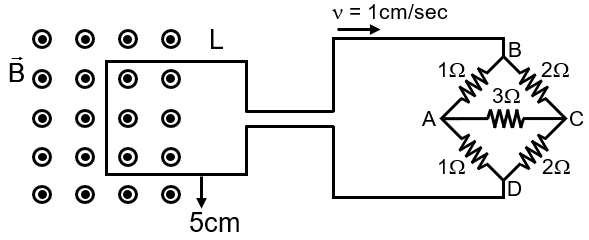

The figure shows a square loop L of side 5 cm which is connected to a network of resistances. The whole setup is moving towards right with a constant speed of 1 cms–1. At some instant, a part of L is in a uniform magnetic field of 1T, perpendicular to the plane of the loop. If the resistance of loop is 1.7 Ω, the current in the loop at that instant will be close to :

Engineering

Physics

Motional EMF

Question

The figure shows a square loop L of side 5 cm which is connected to a network of resistances. The whole setup is moving towards right with a constant speed of 1 cms^–1. At some instant, a part of L is in a uniform magnetic field of 1T, perpendicular to the plane of the loop. If the resistance of loop is 1.7 Ω, the current in the loop at that instant will be close to :

115 µA

170 µA

60 µA

150 µA

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

Since it is a balanced wheatstone bridge, its equivalent resistance $= \frac{4}{3} Ω$

ε = Bℓv = 5 × 10^–4 V

So total resistance

$E = \frac{4}{3} + 1 .7 \approx 3 Ω$

$∴ i = \frac{ε}{R} \approx 166 μA \approx 170 μA$
