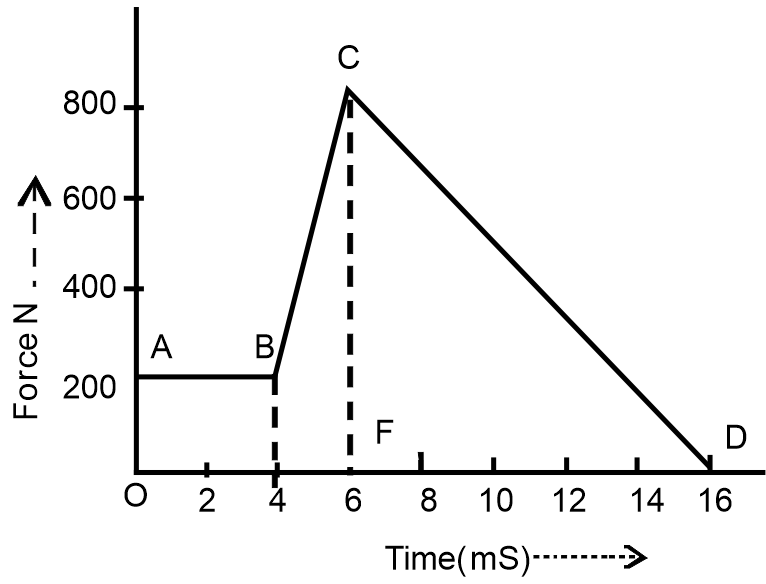

The magnitude of the force (in Newton) acting on a body varies with time t (in milliseconds) as shown in the figure. AB, BC and CD are straight line segments. The magnitude of the total impulse of the force on the body from t = 4 ms to t= 16 ms is ___

Engineering

Physics

Momentum and Energy Conservation for System of Particles

Question

The magnitude of the force (in Newton) acting on a body varies with time t (in milliseconds) as shown in the figure. AB, BC and CD are straight line segments. The magnitude of the total impulse of the force on the body from t = 4 ms to t= 16 ms is ____ $X 10^{- 3}$ Ns.

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

The magnitude of the total impulse of the force on the body form t = 4 µs to t = 16 µs = Area EBCD
= Area of trapezium EBCFE + Area of CFD
