The moment of inertia of a uniform thin rod of mass m and length $l$ about two axis PQ and RS passing through centre of rod C and in the plane of the rod are I_PQ and I_RS respectively. Then I_PQ + I_RS is equal to

$\frac{{mℓ}^{2}}{2}$

$\frac{{mℓ}^{2}}{3}$

$\frac{{mℓ}^{2}}{4}$

$\frac{{mℓ}^{2}}{12}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

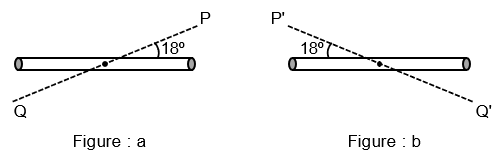

The MI of rod about axis PQ figure(a) and MI of rod about axis P'Q' figure (b) are same by symmetry.

$∴ I_{PQ} + I_{RS} = I_{P' Q'} + I_{RS} = \frac{{mℓ}^{2}}{12}$

by perpendicular axis theorem.
