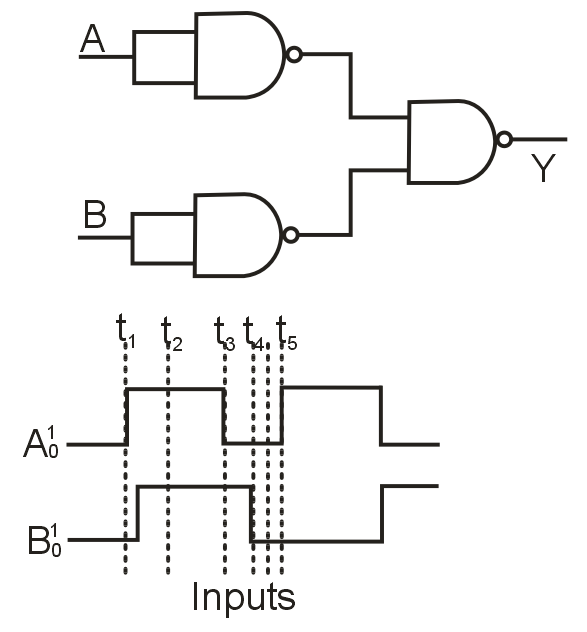

The output waveform of the given logical circuit for the following inputs A and B as shown below is:

Engineering

Physics

Logic Gates New

Question

The output waveform of the given logical circuit for the following inputs A and B as shown below is:

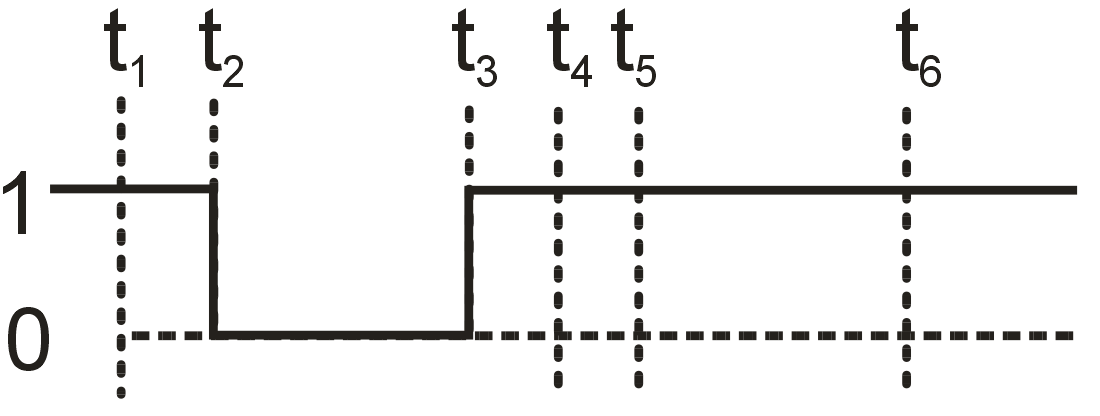

A

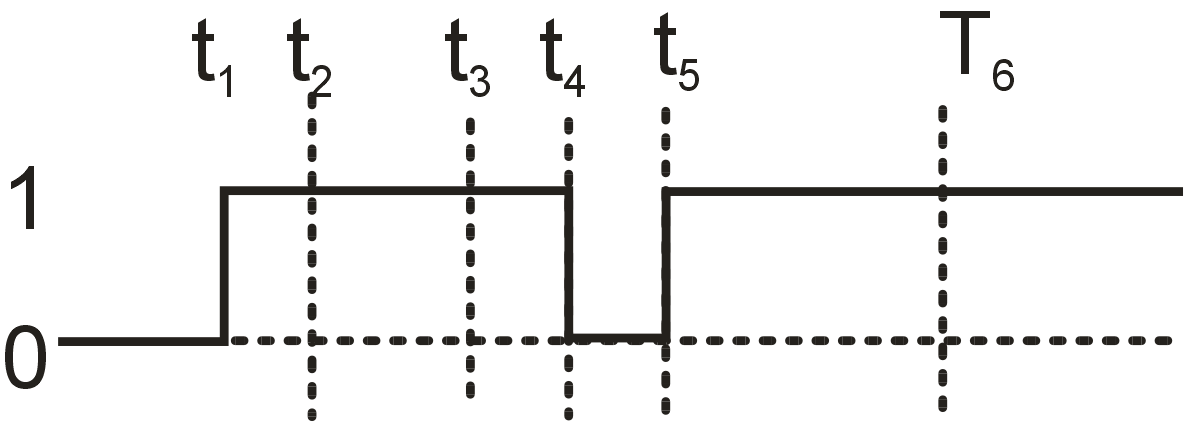

B

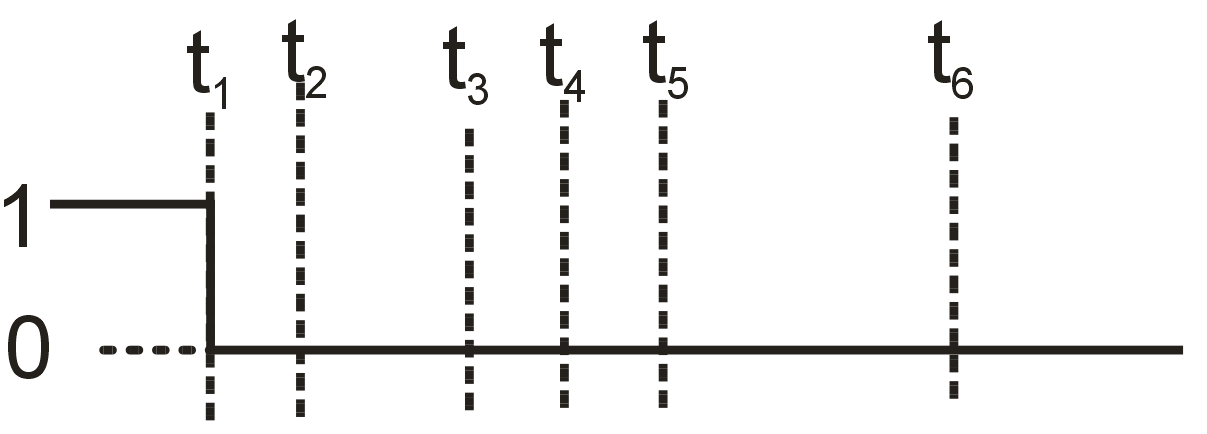

C

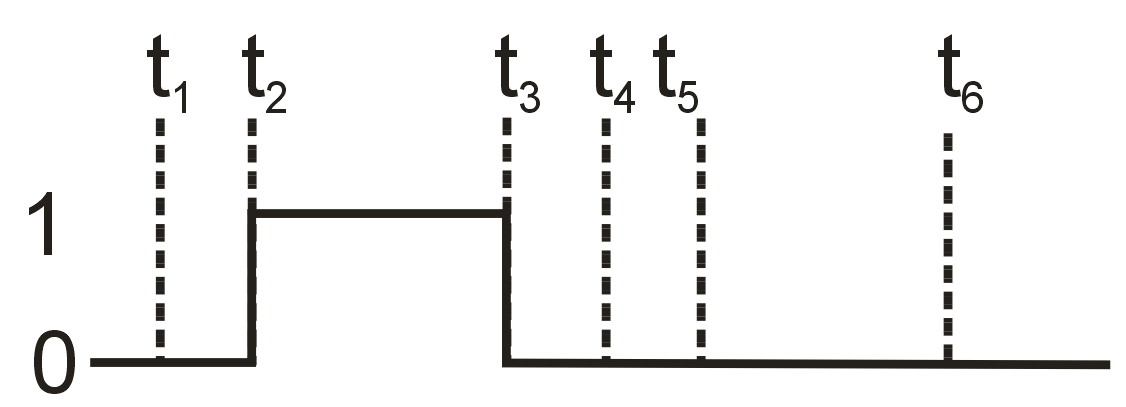

D

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

JEE Advance

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

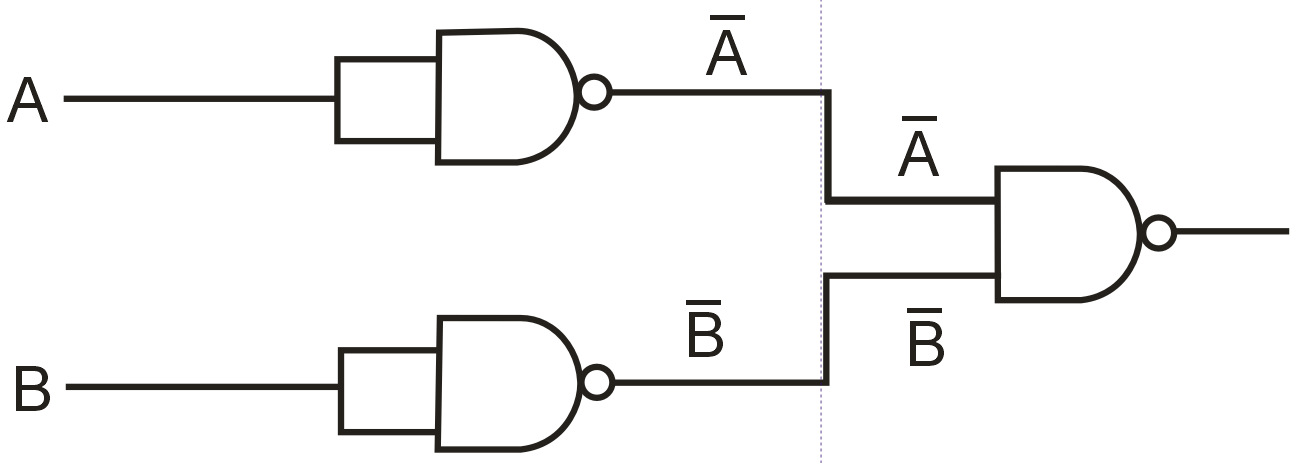

$\bar{A . A} = \bar{A}$

$y = \bar{\bar{A} \bar{B}}$

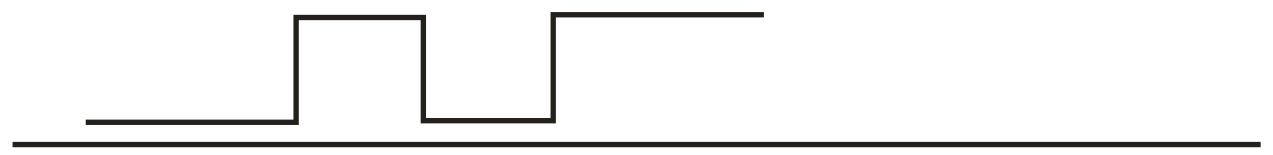

y = A + B
