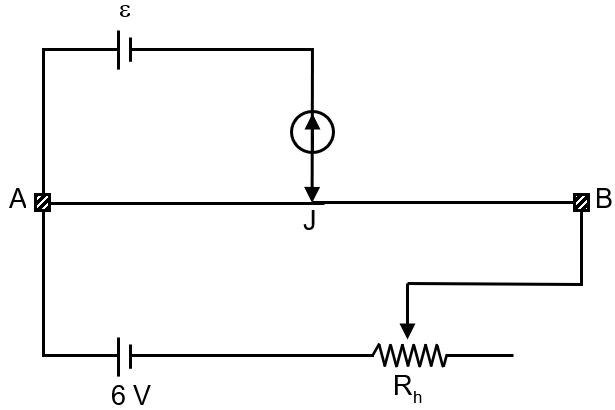

The resistance of the meter bridge AB in given figure is 4 Ω. With a cell of emf ε = 0.5 V and rheostat resistance R_h = 2 Ω the null point is obtained at some point J. When the cell is replaced by another one of emf ε = ε₂ the same null point J is found for R_h = 6 Ω. The emf ε₂ is:

0.4

0.5

0.6

0.3

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$0 .5 = \frac{6}{(2 + λL)} λx . ....... (1)$

$E_{2} = \frac{6}{(6 + λL)} λx . ..... (2)$

So dividing equation (1) and (2)

$\frac{E_{2}}{0 .5} = \frac{2 + 4}{6 + 4} = \frac{3}{5}$

⇒ E₂ = 0.3 Volt.
