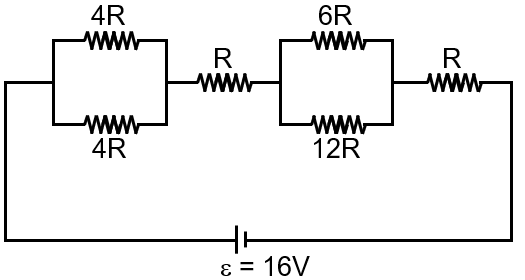

The resistive network shown below is connected to a D.C. source of 16V. The power consumed by the network is 4 Watt. The value of R is :

Engineering

Physics

Heating Effects of Current and Electric Power

Question

6 $Ω$

1 $Ω$

16 $Ω$

8 $Ω$

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

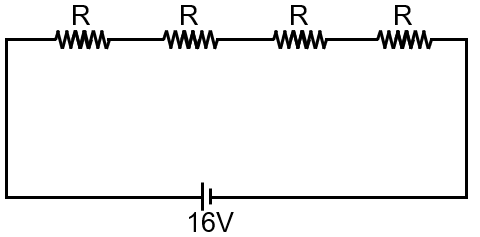

$P = \frac{16^{\hat{2}}}{8 R} = 4$

$∴$ R = 8 $Ω$
