Question

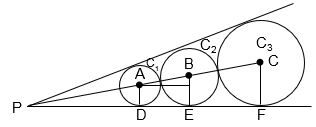

There are three circles C₁, C₂, C₃ with radii r₁, r₂, r₃ (r₁ < r₂ < r₃) touches each other externally as shown and L₁, L₂ are two common tangents to these circles from point P.

Which of the following is(are) correct?

r₂² = r₁r₃

$DE = \sqrt{r_{2}^{2} - r_{1}^{2}}$

$DE = 2 \sqrt{r_{1} r_{2}}$

$r_{2} = \frac{r_{1}^{2} + r_{3}^{2}}{r_{1} + r_{3}}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$DE = AK = \sqrt{{(r_{1} + r_{2})}^{2} - {(r_{1} - r_{2})}^{2}}$

$= 2 \sqrt{r_{1} r_{2}}$

Let PD = x and $∠$ APD = θ

$∴ tanθ = \frac{AD}{PD} = \frac{BE}{PE} = \frac{CF}{PF}$

$\Rightarrow \frac{r_{1}}{x} = \frac{r_{2}}{x + 2 \sqrt{r_{1} r_{2}}}$

$= \frac{r_{3}}{x + 2 \sqrt{r_{1} r_{2}} + 2 \sqrt{r_{2} r_{3}}}$

$\Rightarrow \frac{r_{2} - r_{1}}{2 \sqrt{r_{1} r_{2}}} = \frac{r_{3} - r_{2}}{2 \sqrt{r_{2} r_{3}}}$

$\Rightarrow r_{2} = \sqrt{r_{1} r_{3}} .$
