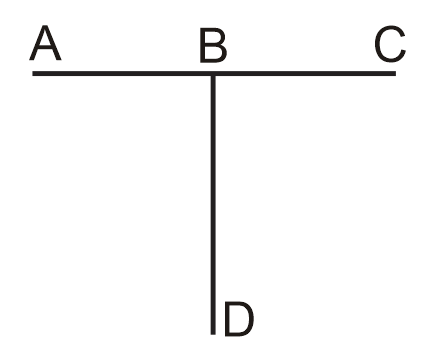

Three conducting rods of same material and cross-section are shown in figure. Temperatures of A, D and C are maintained at 20°C, 90°C and 0°C. The ratio of lengths of BD and BC if there is no heat flow in AB is:
Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.
Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA
Solution
\[ P_{BD} = k \cdot A \cdot \frac{70}{L_{BD}}, \quad P_{BC} = k \cdot A \cdot \frac{20}{L_{BC}} \] \[ P_{BD} = P_{BC} \implies \frac{70}{L_{BD}} = \frac{20}{L_{BC}} \] \[ \frac{L_{BD}}{L_{BC}} = \boxed{\dfrac{7}{2}} \]
