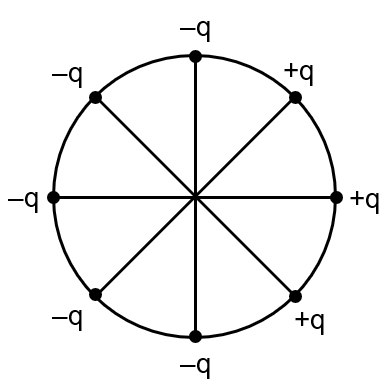

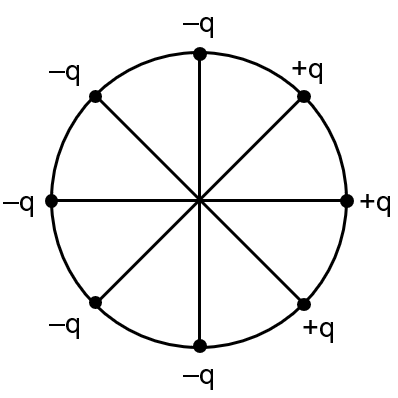

Three positive charges and five negative charges of same magnitude are arrangement as shown in the figure. The magnitude of the electric field and the electric potential at the centre of the circle of radius r are given by

Engineering

Physics

Electric Potential Energy and Electric Potential

Question

$E = \frac{2 kq}{r^{2}} (1 + 2 \sqrt{2}), V = 0$

$E = \frac{2 kq}{r^{2}} (1 + 2 \sqrt{2}), V = \frac{- 2 qk}{r}$

None of these

$E = \frac{2 kq}{r^{2}} (1 + \sqrt{2}), V = \frac{- 2 qk}{r}$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$E = \frac{kq}{R^{2}} \cos 45 º \times 4 + \frac{kq}{r^{2}} \times 2$

$= \frac{kq}{r^{2}} [2 + 2 \sqrt{2}]$

$v = \frac{- 2 kq}{r}$
