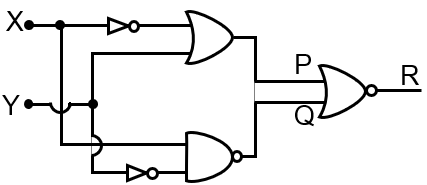

To get output '1' at R, for the given logic gate circuit the input values must be:

Engineering

Physics

Logic Gates New

Question

X = 0, Y = 0

X = 1, Y = 1

X = 1, Y = 0

X = 0, Y = 1

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$R = \bar{P + Q} = \bar{(\bar{x} + y) + (\bar{x \bar{y}})}$

$= (\bar{\bar{x} + y}) \cdot (x \bar{y})$

$= (x \cdot \bar{y}) \cdot (x \bar{y})$

$= x \bar{y}$
