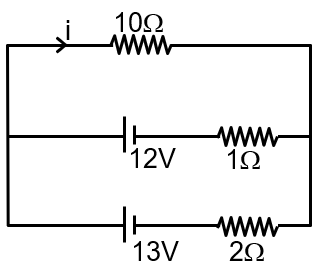

Two batteries with e.m.f. 12 V and 13 V are connected in parallel across a load resistor of 10 Ω. The internal resistances of the two batteries are 1 Ω and 2 Ω respectively. The voltage across the load lies between:

Engineering

Physics

Combination of Cells and Batteries

Question

11.7 V and 11.8 V

11.6 V and 11.7 V

11.4 V and 11.5 V

11.5 V and 11.6 V

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$v = i (10) = \frac{ε_{eq}}{R_{eq}} (10)$

$v = \frac{\frac{\frac{12}{1} + \frac{13}{2}}{\frac{1}{1} + \frac{1}{2}}}{10 + \frac{2}{3}} \times 10 = 11 .56 volts$
