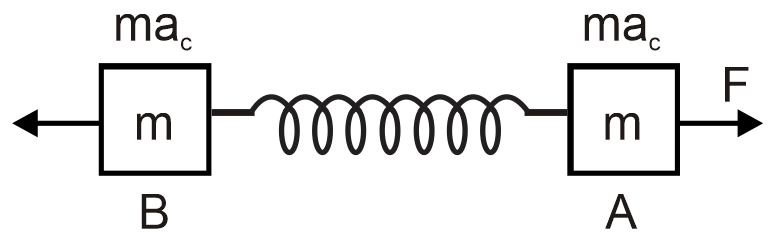

Two blocks of mass 2kg each are connected by a spring of constant 1000 N/m. Initially, the spring is at the natural length. A force of 10 N is applied to the 1st block. At 0.1 sec, the extension in the spring is seen to be 1 cm. What is the displacement of the block A (in cm) till that time as seen from ground.

Engineering

Physics

Center of Mass

Question

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$a_{cm} = \frac{F}{m + m} = \frac{F}{2 m}$

$\frac{1}{2} \times 2.5 \times (0.1)^{2} = s_{c}$

$\frac{5}{400} m = s_{c}$

In C-frame

Displacement of A in C-fram

$s_{ac} - s_{bc} = s_{ab} = \frac{1}{100}$

2s_ac + 2s_bc = 0
s_ac = –s_bc

$2 s_{ac} = \frac{1}{100}$

$s_{ac} - s_{c} = s_{ac} = \frac{1}{200}$

$s_{a} = \frac{5}{400} + \frac{1}{400} = \frac{7}{400}$

Total displacement A = s_c + s_ac
