Two ideal batteries of emf V1 and V2 and three resistances R1, R2 and R3 are connected as shown in the figure. The current in resistance R2 would be zero if

Engineering

Physics

Basic Circuit Theory and Kirchoffs Law for DC Circuit

Question

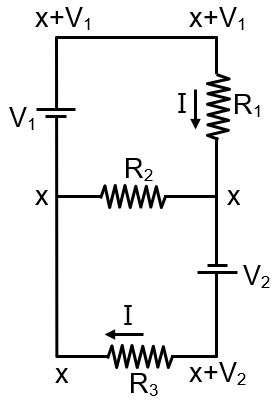

Two ideal batteries of emf V₁ and V₂ and three resistances R₁, R₂ and R₃ are connected as shown in the figure. The current in resistance R₂ would be zero if

V₁ = V₂ and R₁ = 2R₂ = R₃

V₁ = 2V₂ and 2R₁ = 2R₂ = R₃

V₁ = V₂ and R₁ = R₂ = R₃

2V₁ = V₂ and 2R₁ = R₂ = R₃

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$\frac{V_{1}}{R_{1}} = \frac{V_{2}}{R_{3}}$
