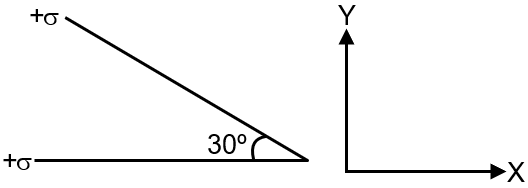

Two infinite planes each with uniform surface charge density +σ are kept in such a way that the angle between them is 30°. The electric field in the region shown between them is given by :

Engineering

Physics

Electric Flux and Gauss Law and its Applications

Question

$\frac{σ}{\in_{0}} [(1 + \frac{\sqrt{3}}{2}) \hat{y} + \frac{\hat{x}}{2}]$

$\frac{σ}{2 \in_{0}} [(1 + \sqrt{3}) \hat{y} - \frac{\hat{x}}{2}]$

$\frac{σ}{2 \in_{0}} [(1 + \sqrt{3}) \hat{y} + \frac{\hat{x}}{2}]$

$\frac{σ}{2 \in_{0}} [(1 - \frac{\sqrt{3}}{2}) \hat{y} - \frac{\hat{x}}{2}]$

LiveFree JEE Main Previous Year Online Papers Live Free JEE Advance Previous Year Online Papers

College PredictorLive

Know your College Admission Chances Based on your Rank/Percentile, Category and Home State.

Get your JEE Main Personalised Report with Top Predicted Colleges in JoSA

$\vec{E} = \frac{σ}{2 ε_{0}} \cos 60 º (- \hat{x}) + [\frac{σ}{2 ε_{0}} - \frac{σ}{2 ε_{0}} \sin 60 º] (\hat{y})$

$\vec{E} = \frac{σ}{2 ε_{0}} [(1 - \frac{\sqrt{3}}{2}) \hat{y} - \frac{1}{2} \hat{x}]$
